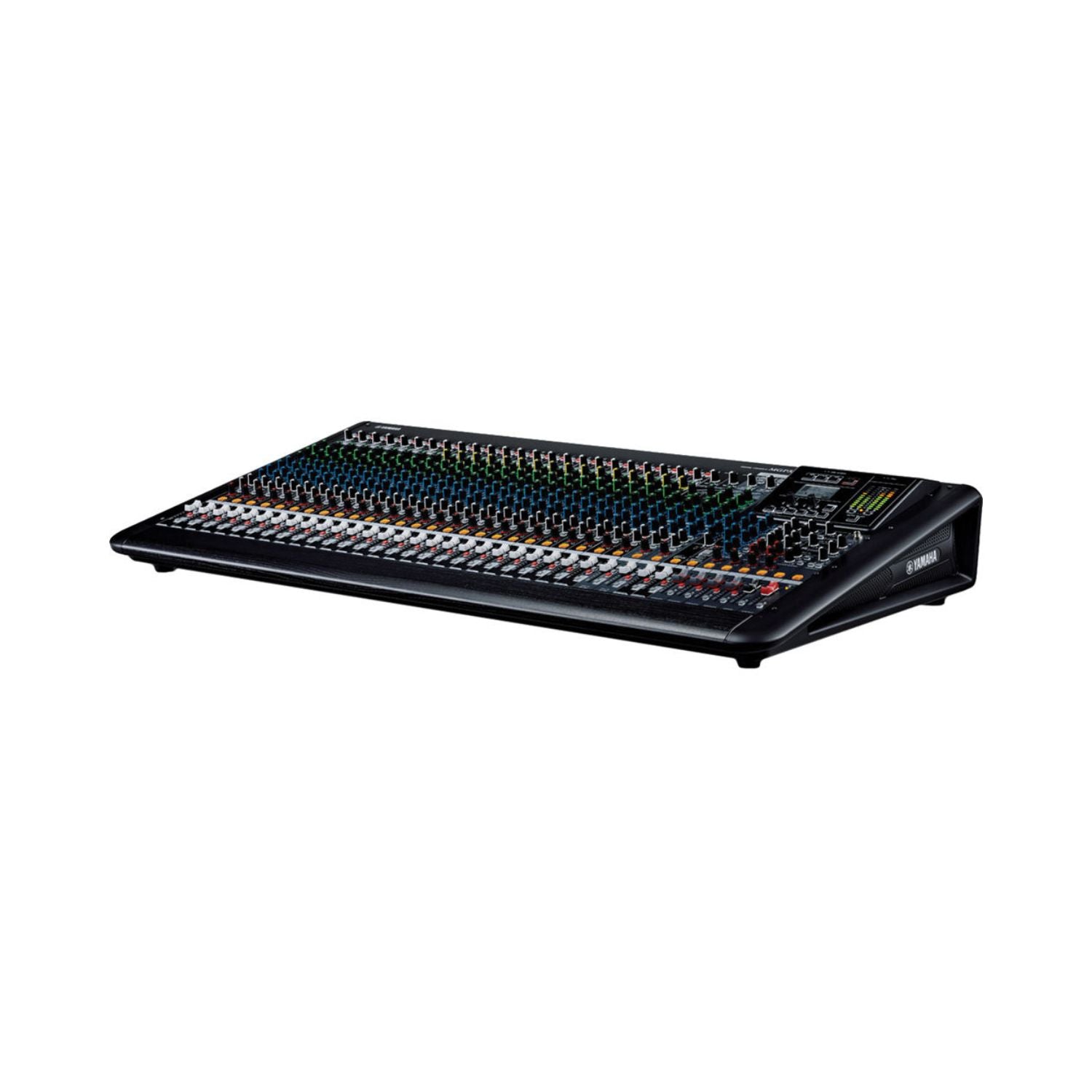

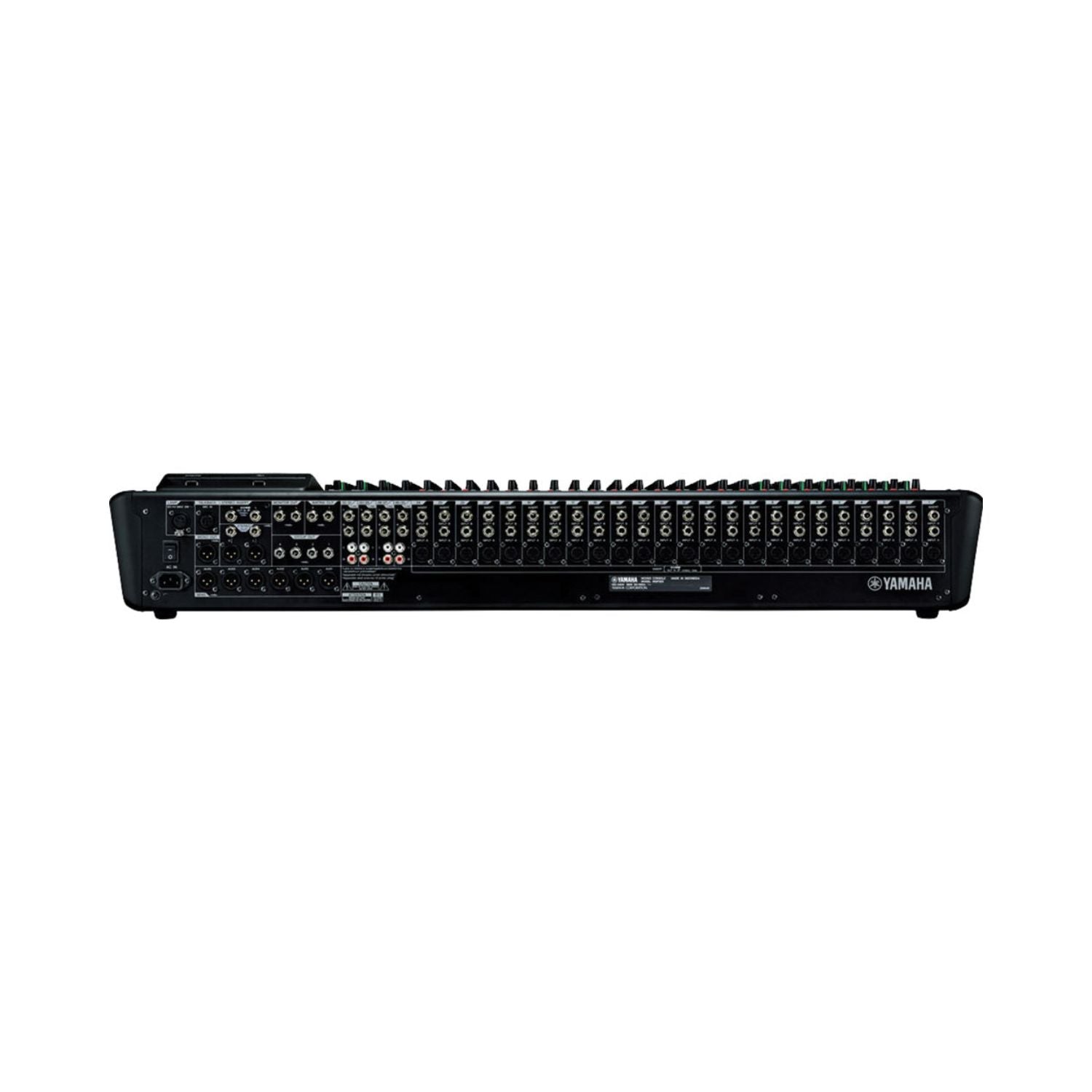

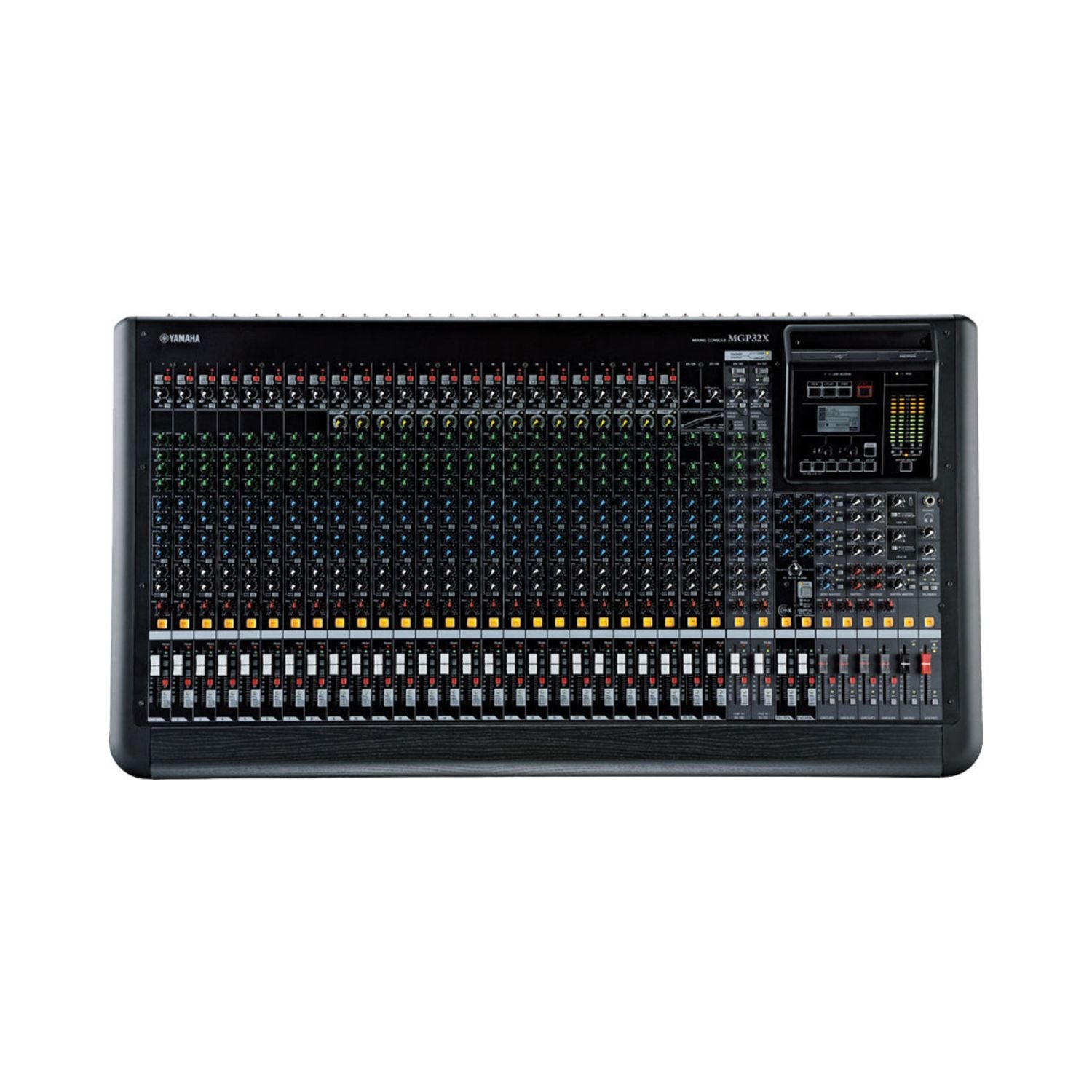

Yamaha MGP32X 32-Channel Analog Mixing Console

The Yamaha MGP32X is a 32-channel analog console with 24 microphone inputs on D-PRE preamps, a DSP Hybrid Channel section with three reverbs and 16 effects, X-pressive EQ and one-knob compression per channel. It measures 40.4 by 22.2 inches and weighs 42 lbs.

Thirty two inputs

Twenty four mono and four stereo channels make up 32 line inputs, with 24 microphone inputs carrying 48 V phantom power. That is a full band, a choir or a conference panel handled on one surface without submixing.

The MGP24X is the smaller version at 24 line and 16 microphone inputs, weighing 34.2 lbs against 42 lbs here. Everything else between the two is the same.

Where the DSP sits

The signal path is analog. The DSP Hybrid Channel section adds three reverb types and 16 effects, with auto-ducker and auto-leveler functions. Auto-ducker lowers music automatically when a microphone opens, which in a venue or a place of worship removes a job the operator would otherwise do dozens of times a night.

REV-X provides high resolution hall, plate and room reverbs alongside the SPX effects.

Channel processing and preamps

Microphone preamps are Yamaha's discrete Class-A D-PRE type. Each channel carries the X-pressive three-band equaliser and a one-knob compressor, which makes compression usable by an operator during a soundcheck rather than a setting nobody touches.

The console is 40.4 by 22.2 inches and weighs 42 lbs, so plan the table or flight case around it.

Specifications

• Channels: 32 line inputs: 24 mono plus 4 stereo
• Microphone inputs: 24, with 48 V phantom power
• Mic preamps: Discrete Class-A D-PRE
• Channel EQ: X-pressive 3-band
• Compression: One-knob compressor per channel
• Reverb: REV-X, high resolution hall, plate and room
• Effects: SPX, 16 effects, plus 3 reverb types in the Hybrid Channel section
• Automation: Auto-ducker, auto-leveler
• Dimensions: 40.4 x 22.2 inches
• Weight: 42 lbs
