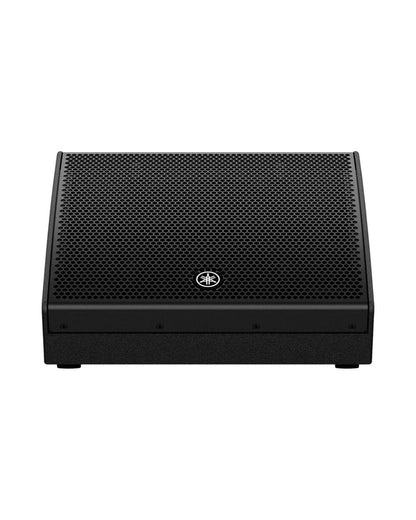

Yamaha CHR12M 2-Way Coaxial 12" Passive Floor Loudspeaker

The Yamaha CHR12M is a passive 12 inch coaxial floor monitor in a plywood enclosure, 8 ohms, rated 250 W noise, 500 W program and 1,000 W peak, with a 57 degree monitor angle and 90 by 90 degree coverage. It weighs 15.6 kg.

Coaxial, because it is a floor monitor

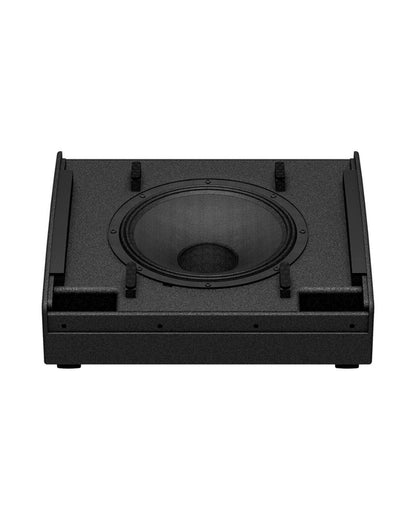

The 12 inch cone and the 1.75 inch compression driver share a single axis rather than sitting one above the other. On a wedge that is the right arrangement: a performer moves around in front of a floor monitor, and a coaxial driver keeps the tonal balance consistent as they do, because both drivers radiate from the same point.

Coverage is 90 degrees horizontal by 90 degrees vertical, which is the wide, square pattern a wedge needs. The crossover is at 1.8 kHz.

Built for the floor

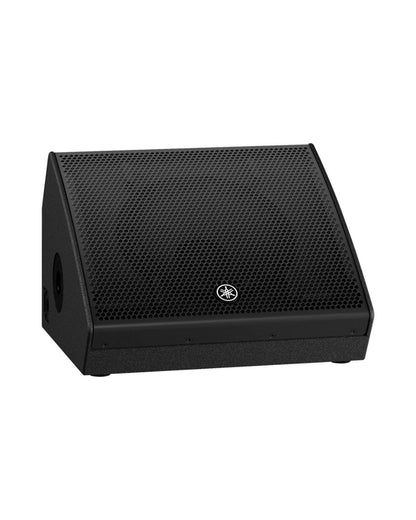

The cabinet sits at a 57 degree monitor angle, aimed up at a standing performer. The enclosure is plywood with a durable black polyurea coating, at 500 x 343 x 454 mm and 15.6 kg.

Power ratings are 250 W noise, 500 W program and 1,000 W peak into 8 ohms, with 93 dB sensitivity at 1 W and 1 m and a 123 dB SPL calculated peak. Frequency range is 61 Hz to 20 kHz at -10 dB, which is appropriate for a monitor where the low end is usually rolled off anyway.

Connection and amplification

Two parallel speakON NL4MP connectors are fitted so wedges can be linked along a stage. The CHR12M is passive, so an amplifier is required, matched to the 500 W program rating rather than to the 1,000 W peak.

For front of house rather than monitor duty, the CHR15 is the 15 inch model with a rotatable horn and 125 dB SPL.

Specifications

• Type: Passive 2-way coaxial floor monitor
• LF driver: 12 inch cone, 2.5 inch voice coil, ferrite magnet
• HF driver: 1.75 inch coaxial compression driver, ferrite magnet
• Nominal impedance: 8 ohms
• Power rating: 250 W noise, 500 W program, 1,000 W peak
• Sensitivity: 93 dB SPL, 1 W at 1 m
• Maximum SPL: 123 dB SPL peak
• Frequency range: 61 Hz to 20 kHz at -10 dB
• Coverage: 90 degrees horizontal by 90 degrees vertical
• Crossover: 1.8 kHz
• Monitor angle: 57 degrees
• Connectors: speakON NL4MP x 2, parallel
• Enclosure: Plywood, durable polyurea coating, black
• Dimensions: 500 x 343 x 454 mm
• Weight: 15.6 kg
