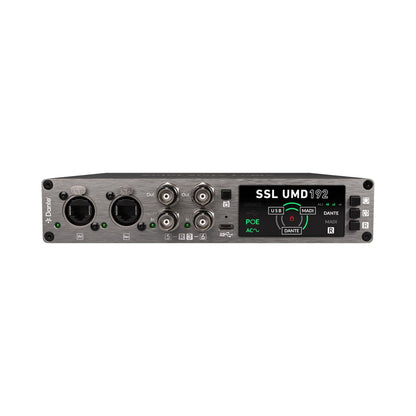

Solid State Logic UMD192 Portable 192-Channel USB-C Dante/MADI Audio Interface
Solid State Logic UMD192 Portable 192-Channel USB-C Dante/MADI Audio Interface
Couldn't load pickup availability
- Genuine Products
- Haslfree Refunds
- Fast Delivery
Description
Solid State Logic UMD192 Portable 192-Channel USB-C Dante & MADI Audio Interface
Built for the rigors of location work and touring, the UMD192's all-metal chassis is entirely bus-powered, eliminating the need for cumbersome external power supplies. This allows you to set up a world-class recording or broadcast rig anywhere your laptop can go. Practical features like dual redundant Dante ports provide mission-critical reliability, while two independent, high-quality headphone outputs allow for flexible monitoring for both engineer and artist. With SSL's renowned D/A conversion and rock-solid drivers, the UMD192 delivers the pristine audio quality and low-latency performance that professionals expect from Solid State Logic.
Key Features
- Massive I/O Capability:Simultaneously access 192 channels (128 Dante + 64 MADI) for the most demanding large-scale recording and broadcast productions.
- Complete Portability:Fully powered via its USB-C connection, requiring no external power supply. Perfect for location recording, OB vans, and fly-rigs.
- Redundant Dante Ports:Features primary and secondary Dante ports for creating a fail-safe, redundant network connection, ensuring your audio stream is never interrupted.
- Optical MADI I/O:Directly connect to a vast range of professional MADI-equipped consoles, stageboxes, and converters with standard optical SC connectors.
- Dual Headphone Outputs:Two independent, studio-grade 1/4" headphone outputs with dedicated volume controls for flexible artist and engineer monitoring.
- Pristine SSL D/A Conversion:Monitor your audio with exceptional clarity and detail, thanks to SSL's legendary digital-to-analog conversion technology.
- Dedicated Word Clock Output:A stable BNC Word Clock output allows the UMD192 to be the master clock for your entire digital studio, ensuring perfect synchronization.
- Robust All-Metal Chassis:Engineered to withstand the demands of professional use, the rugged metal enclosure protects the internal components on the road and in the studio.
- Low-Latency SSL Drivers:Utilizes SSL's custom Core Audio drivers for macOS and ASIO/WDM drivers for Windows, providing ultra-low latency and dependable performance.
Why SSL UMD192 Interface Is Better
While many portable audio interfaces offer a handful of channels, the SSL UMD192 operates in a completely different class. It's not an incremental update; it's a comprehensive solution that replaces complex, multi-device setups. Before the UMD192, achieving this level of Dante and MADI integration on the go required multiple converters, a dedicated power infrastructure, and a larger footprint. This single, bus-powered unit provides a staggering 192 channels, something previously unheard of in a portable form factor. Its direct competitors often lack either MADI or Dante, and almost none offer both with network redundancy in a bus-powered design.
Advantages
* Mission-Critical Reliability: Redundant Dante ports ensure a stable audio network, critical for live on-air applications.
* Compact Footprint: Perfectly sized for crowded OB vans, SNG trucks, and compact fly-packs.
* Simplified Setup: The bus-powered design removes a point of failure and speeds up deployment in fast-paced broadcast environments.
For Live Sound Technicians:
* Ultimate Virtual Soundcheck Tool: Record up to 192 channels from any Dante or MADI console for playback and mixing without the band.
* Seamless System Bridging: Connect a MADI-based FOH console to a Dante-based monitor desk or recording system effortlessly.
* Road-Ready Construction: The all-metal chassis is built to endure the constant setup and teardown of touring.
For Studio Producers & Engineers:
* Integrate Any Digital Gear: Seamlessly bring audio from large-format consoles and networked audio devices into your primary DAW.
* System-Wide Sync: Use the dedicated Word Clock output to become the stable master clock for all your digital equipment.
* Accurate Monitoring: Rely on SSL's high-quality D/A conversion and headphone amplifiers for critical listening during tracking and mixing.
Best Suitable For
- Broadcast Engineers: For its redundant Dante ports and compact, reliable design perfect for OB vans and remote productions.
- Live Sound Technicians: Because it effortlessly handles high-channel-count virtual soundchecks and multitrack recordings from any digital console.
- Location Sound Recordists: Its bus-powered, rugged build provides a massive I/O count without needing external power.
- Post-Production Studios: To integrate large Dante or MADI workflows directly into their primary DAW for mixing and mastering.
Why Buy From ProAudio Brands
- Authorized SSL Dealer: We are an official, authorized dealer for Solid State Logic in India, ensuring you receive a 100% genuine product.
- Official Manufacturer Warranty: Your purchase includes a full 1-year SSL India warranty, serviced by certified technicians.
- GST Invoice Provided: As a professional, you can get a proper GST invoice for your purchase to claim input tax credit.
- Expert Audio Advice: Our team consists of audio professionals who can provide technical support and help you integrate the UMD192 into your specific setup.
- Fast & Secure All-India Delivery: We offer reliable and insured shipping to all major cities and remote locations across India.
FAQs - Solid State Logic UMD192 Portable 192-Channel USB-C Dante/MADI Audio Interface
Q: Does the SSL UMD192 require an external power supply?
A: No, it is fully powered by the USB-C connection to your computer, making it ideal for portable use.
Q: Can I use the Dante and MADI ports at the same time?
A: Yes, the UMD192 is designed to bridge these formats, allowing you to use both Dante and MADI I/O simultaneously with your computer.
Q: What is the purpose of the two Dante ports?
A: The dual ports allow for network redundancy. You can connect them to two separate network switches for a fail-safe connection, which is critical for live and broadcast events.
Q: Is this interface compatible with Apple Silicon (M1/M2/M3) Macs?
A: Yes, Solid State Logic provides drivers that are fully compatible with Apple Silicon-based Macs. Always check the SSL website for the latest driver version.
Q: What is the maximum sample rate supported?
A: The UMD192 supports sample rates up to 192 kHz.
Q: How many channels are available at higher sample rates like 192 kHz?
A: At higher sample rates, the channel count is reduced. At 176.4/192 kHz, the UMD192 supports 32 channels of MADI and 32 channels of Dante.
Q: Does this require special drivers?
A: Yes, to achieve optimal low-latency performance, you must install the SSL Core Audio driver for Mac or the ASIO/WDM driver for Windows.
Q: Can I connect this to an older computer with only USB-A ports?
A: Yes, a USB-C to USB-A adapter is included in the box to ensure compatibility with a wide range of computers.
Q: What software do I need to manage Dante routing?
A: You will need the free Dante Controller software from Audinate to route audio channels on the Dante network.
Q: Are the two headphone outputs independently controllable?
A: Yes, each of the two 1/4" headphone outputs has its own dedicated volume control knob on the front panel.
Q: Is a GST invoice available with the purchase from ProAudio Brands?
A: Absolutely. We provide a proper GST invoice for every purchase, allowing you to claim input tax credit.
Q: What is the warranty period for the SSL UMD192 in India?
A: When purchased from an authorized dealer like ProAudio Brands, the product comes with a 1-year official manufacturer warranty valid in India.
Q: How rugged is the construction?
A: The UMD192 features a robust, all-metal chassis designed to withstand the demands of professional touring and location recording.
Q: Can this interface act as a master clock for my studio?
A: Yes, it has a dedicated BNC Word Clock output, allowing it to serve as a stable master clock for your other digital audio devices.
Q: What comes inside the box?
A: The box includes the SSL UMD192 interface, a USB-C to USB-C cable, a USB-C to USB-A adapter, and a safety guide.
Q: Is the UMD192 compatible with AES67?
A: Yes, the Dante platform is fully compatible with the AES67 standard, allowing for interoperability with a wider range of networked audio products.
Q: Can I use this for a virtual soundcheck with a MADI-based console?
A: Yes, this is an ideal tool for that. You can record 64 channels via MADI from the console to your DAW, and then play them back for mixing and system tuning.
