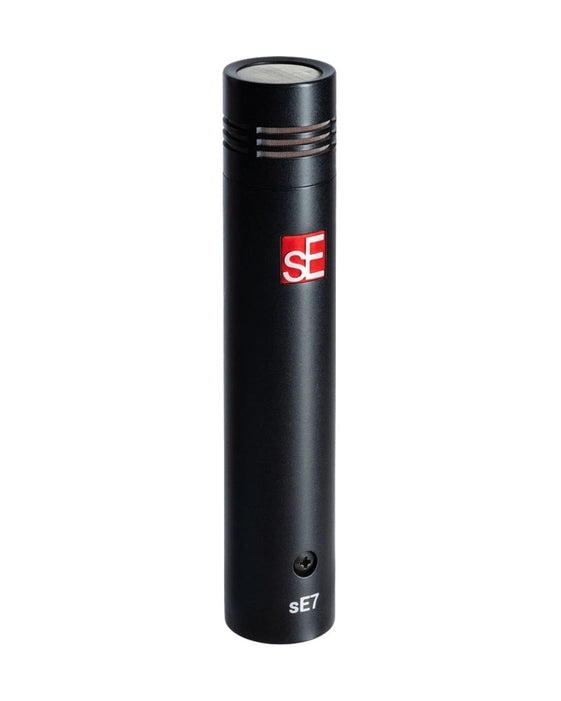

sE Electronics sE7 Small-Diaphragm Condenser Microphone

Product details

A COMPACT & CLASSY CONDENSER

The sE7 is a high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond.

Features

• Optimized acoustic design, discrete class-A circuitry and a transformerless output
• Clear, natural sound quality at all frequencies
• Switchable -20dB attenuation pad
• High sound pressure level (SPL) handling capability
• Switchable low-cut 80 Hz filter
• Extremely low-noise components

Specifications

• Components
  Capsule
  1 / 2" Back-electret condenser capsule
• Power
  Electrical impedance
  <200 Ohms
  Recommended load impedance
  >1k Ohms
  Connectivity
  3-pin male XLR connector
  Powering
  48V Phantom Power (P48 according to IEC 61938)
• Sound
  Polar patterns
  Cardioid
  Frequency range
  20 Hz - 20 kHz
  Sensitivity
  19 mV / Pa (-35 dBV)
  Max SPL
  136 / 156 dB (0 / 20 dB attenuation pad)
  Equivalent noise level
  16 dB
  Dynamic range
  120 / 140 dB (0 / 20 dB attenuation pad)
  Signal to noise ratio
  78 dB
  Low-cut filter
  80 Hz, 6 dB / Oct, switchable
  Attenuation pad
  20 dB, switchable
  Current consumption
  3.0 mA
• Dimensions
  Mic Diameter
  23 mm (0.91 in.)
  Mic length
  120 mm (4.72 in.)
  Mic weight
  128 g (4.52 oz.)
