Product details

RØDELink is a professional 2.4GHz digital wireless system for capturing crystal-clear, broadcast-grade audio in a wide range of recording applications. The RØDELink system constantly monitors and hops between frequencies to maintain the strongest possible signal level, so your audio is just as secure as a cabled connection. The signal is fully encrypted and delivers high-resolution, lossless audio at a range of up to 100 metres.

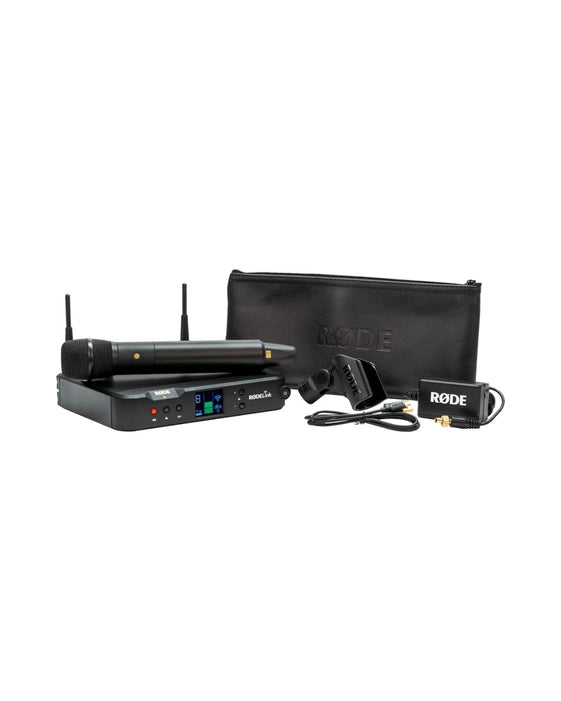

The RØDELink Performer Kit is a complete recording kit with a studio-grade condenser microphone and desktop receiver, perfect for capturing high-quality audio for lectures, Q&As, school presentations, weddings and live performances.

The Transmitter

The RØDELink Performer Kit comes with the studio-grade TX-M2 handheld condenser microphone for capturing clear, detailed audio in all vocal applications – from singing to presentations. The included LB-1 lithium-ion rechargeable battery offers 10 hours of operation on a single charge or can be powered by two AA batteries (~6 hours operation). It also features a convenient mute switch, which can be locked in place to prevent accidental operation.

The Receiver

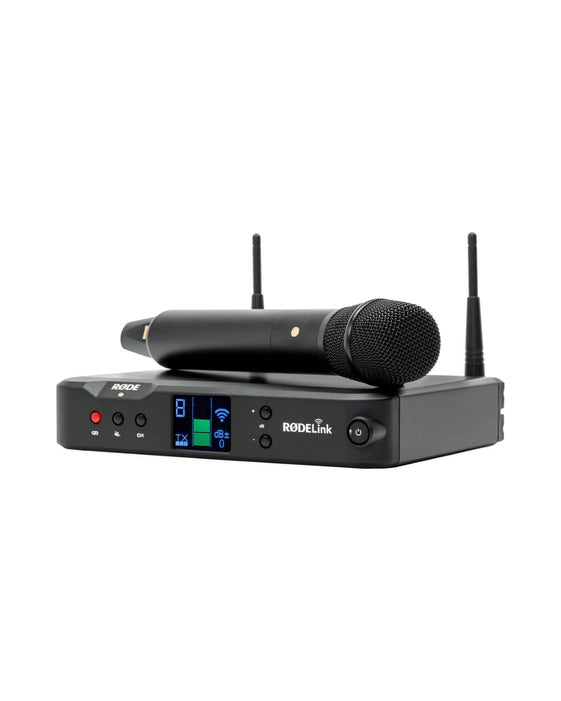

The TX-M2 microphone connects seamlessly with the RX-DESK compact desktop receiver unit. The microphone and receiver pair straight out the box with no channel selection necessary, and the RØDELink system's 2.4GHz wireless transmission ensures a strong connecting in any environment. The RX-DESK features a 40dB level adjustment control, both balanced XLR and 1/4" jack outputs, and a digital display that shows battery life, signal strength, and peak warning.

Features

* Professional 2.4GHz digital wireless microphone system
* Includes studio-grade condenser microphone/transmitter and desktop receiver
* Low handling noise
* Up to 100 metres range
* Powered by AA batteries or included LB-1 rechargeable battery
* Balanced XLR and unbalanced 1/4-inch jack outputs

Specifications

• Transmission Type
  2.4 Ghz Fixed Frequency Agile System
• System Dynamic Range
  118dB
• Range (Distance)
  Up To 100m*
• Frequency Range
  35Hz - 20kHz
• Maximum Output Level
  +18dBu
• Maximum Input Signal Level
  140dB SPL
• Maximum Latency
  4ms
• Power Source
  RX-DESK - DC Power Pack 15v 1A Or DC Power Pack
  TX-M2 - Batteries Or USB

Antenna
RX-DESK - External Diversity Antenna
TX-M2 - Diversity Antenna Located At The Bottom Of The TX-M2

Output Connection
RX-DESK - Balanced XLR / Unbalanced 1/4" Jack

Input Connection
TX-M2 - N/A
