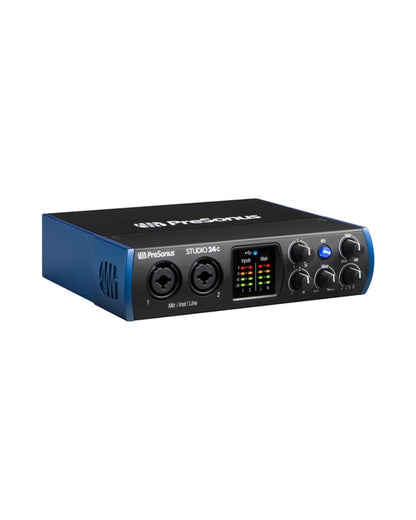

PreSonus Studio 24c Desktop 2x2 USB Type-C Audio Interface
Product details
Whether you’re recording your first album or your hit podcast’s latest episode, the Studio 24c will help you sound your best. With two of PreSonus®’ pristine XMAX-L mic preamps for recording vocals, high-headroom instrument preamps so you can connect your guitar or bass directly to your interface, and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor.
When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus’ professional-grade XMAX-L mic preamps let you capture complex musical harmonics smoothly and naturally. Professional input and output metering let you keep an eye on your levels when you’re recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. A complete home recording studio right out of the box, the Studio 24c audio interface comes with a complimentary license for PreSonus’ award-winning Studio One® Artist music production software so you can start recording right away.
World-Class Recording Software Included.
The Studio 24c works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools.
Make Your Own Magic.
Expand your Studio One® experience with the Studio Magic Suite of software. Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU and AAX formats to use in Studio One Artist or your DAW of choice, with a retail value of over $1,000 (US).
Frequently asked questions
Certainly! Here are some frequently asked questions and answers about the PreSonus Studio 24c audio interface:
Q: What is the PreSonus Studio 24c?
A: The PreSonus Studio 24c is a compact and portable audio interface designed for professional audio recording and playback. It provides high-quality audio conversion and features two combo inputs, MIDI I/O, headphone output, and balanced line outputs.
Q: What are the key features of the PreSonus Studio 24c?
A: Some key features of the PreSonus Studio 24c include:
- Two XLR/TRS combo inputs with Class A microphone preamps and individual gain control.
- MIDI input and output for connecting MIDI instruments and controllers.
- 24-bit/192 kHz audio resolution for high-quality recording and playback.
- USB-C connectivity for fast and reliable data transfer.
- Zero-latency monitoring with a dedicated headphone output and direct monitoring control.
- Phantom power for condenser microphones.
- Studio One Artist recording software included.
- Compatibility with popular recording software such as Pro Tools, Ableton Live, Cubase, and more.
Q: What are the system requirements for the PreSonus Studio 24c?
A: The PreSonus Studio 24c is compatible with both Mac and Windows operating systems. The specific system requirements can vary, but generally, you'll need a computer with an available USB port and a compatible operating system version (check PreSonus' website for the latest compatibility information).
Q: Can I use the PreSonus Studio 24c with my favorite recording software?
A: Yes, the PreSonus Studio 24c is designed to work with a variety of recording software. It is compatible with popular digital audio workstations (DAWs) such as Studio One, Pro Tools, Ableton Live, Logic Pro, Cubase, and more. It also supports ASIO, Core Audio, and WASAPI drivers for smooth integration with your preferred recording software.
Q: Does the PreSonus Studio 24c require external power?
A: No, the PreSonus Studio 24c is powered via USB. It does not require an external power source, making it highly portable and suitable for use with laptops and other mobile setups.
Q: What is the warranty period for the PreSonus Studio 24c?
A: The warranty period for PreSonus products can vary, so it's best to check with PreSonus or the authorized retailer for the specific warranty details and duration for the Studio 24c audio interface.
If you have any further questions about the PreSonus Studio 24c, I recommend reaching out to PreSonus directly or referring to their product documentation for the most accurate and up-to-date information.
Features
- Simultaneous I/O up to 2 inputs/2 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼-inch TRS main outputs to connect professional studio monitors
- High-power headphone output
- MIDI In/Out
- Mixer knob for low-latency direct input monitoring
- Front-panel level controls for main outputs
- 4 ladder-style LED level meters (2 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
Specifications
- Electronics
Voltage
USB Bus Powered
Inputs
Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))
Jack
1/4" Stereo
Line Out
Two - 1/4" Balanced (Left and Right) - Miscellaneous
Connection Type
USB-C Cable
MIDI I/O
Dual 5-Pin Female DIN - Microphone Preamp
Total Harmonic Distortion
0.004% (1 kHz, -1 dBFS, Minimum Gain)
Gain Control Range
50 dB
Maximum Input Level
+10 dBu (±0.5 dBu, Minimum Gain)
Phantom Power
+48 VDC (10 mA Total)
Frequency Response
20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Input Impedance
1.4 kΩ
Dynamic Range
106 dB (A-Weighted, Minimum Gain)
Equivalent Input Noise
-126 dBu (A-Weighted, 150Ω, Maximum Gain) - Main And Line Outputs
Main And Line Outputs Maximum Level
+10 dBu (1 kHz, Unity Gain, Balanced)
Main And Line Outputs Frequency Response
20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, -1 dBFS, Unity Gain)
Main And Line Outputs Dynamic Range
104 dB (Unity Gain, Unweighted) - Headphone Outputs
Maximum Output
47 mW/Channel @56Ω
Frequency Response
20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)
Dynamic Range
83 dB (A-Weighted, 56Ω Load)
Total Harmonic Distortion
0.01% (1 kHz, 0 dBFS, Loaded)
Impedance Working Range
32Ω to 300Ω - Digital Audio
Dynamic Range
108 dB
Bit Depth
24 Bit
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, or 192 kHz (kHz)
