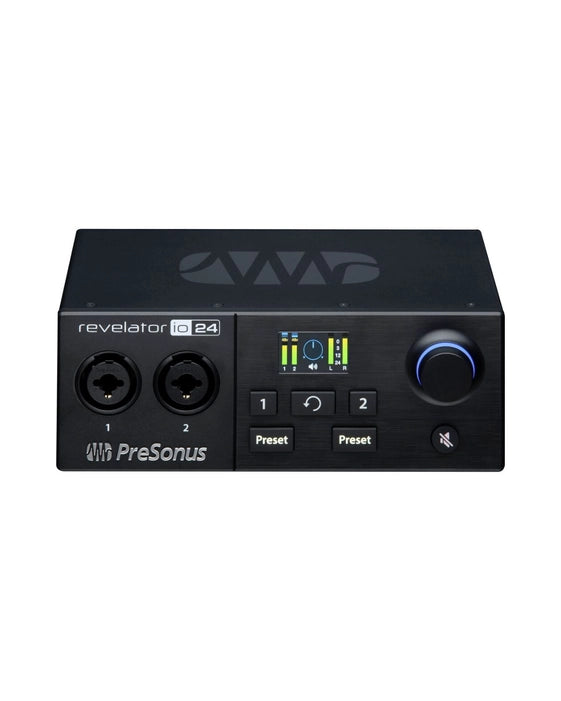

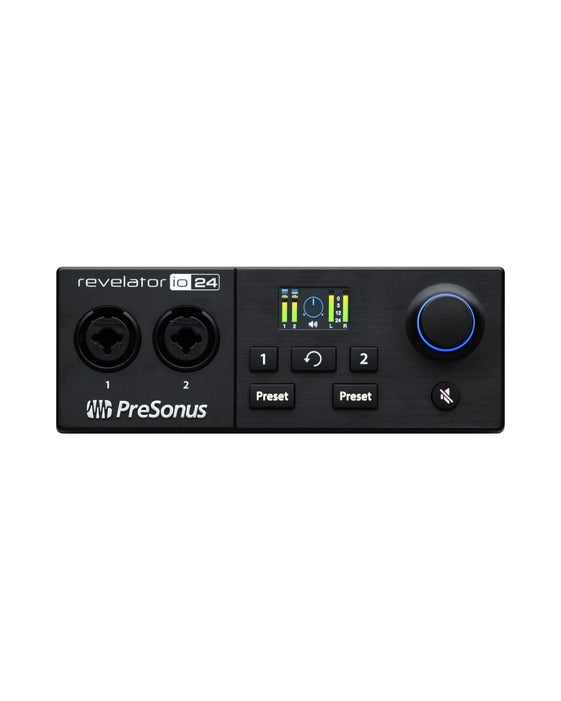

PreSonus Revelator io24 USB Type-C Audio Interface

Product details

Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Quickly record Zoom calls for your podcast, add backing tracks to your live stream performance, and more.

Produce a great mix for your stream fast by engaging Stream Mix mode and with the click of a button, your complete DSP mix–analog inputs, loopback channels, reverb, and effects–are patched to the USB stream, where you can easily send it to your streaming software. No complex routing or extra hardware required.

You’ll also get over $1000 USD of software to record, produce, and polish your podcasts and music, including: Studio One Artist, Ableton Live Lite, and the Studio Magic Suite. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is built to ‘cast.

Get Recording Right Away.

Revelator io24 comes with a complete suite of professional software to take your sound to the next level. Studio One® Artist features lightning-fast drag-and-drop workflow, a complete suite of plug-ins, and the professional mixing and production tools that made Studio One so beloved.

Analog Classics Under The Hood.

Revelator io24 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.

Ready To Go Live When You Are.

Revelator io24’s presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.

Features

• Add Revelator power and flexibility to any XLR microphone
• 2 XMAX-L mic preamps with +48V phantom power for professional XLR mics and crystal-clear sound
• 2 stereo loopback streams for mixing audio from Zoom, Skype, backing tracks, and more
• Professionally-crafted presets make you sound like a pro at the press of a button—or design, save, and share your own
• Stream Mix mode lets you create a complete stereo mix with Revelator io24 hardware inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
• Over $1000 worth of software including Studio One Artist, Ableton Live Lite, and Studio Magic Suite.

Specifications

• Electronics
  Voltage
  USB Bus Powered
  Inputs
  Two - 2 x XLR/TRS Line Combo

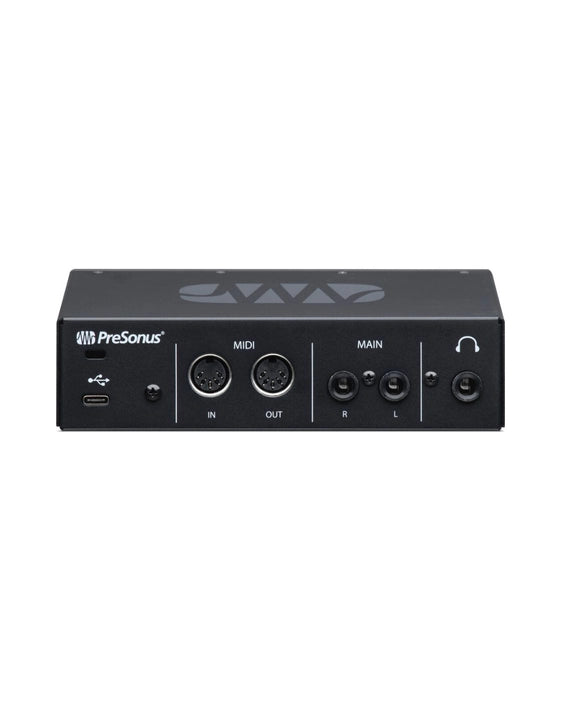

  Line Out
  Two - 1/4" Balanced (Left and Right)
• Miscellaneous
  Connection Type
  USB-C Cable
  MIDI I/O
  Dual 5-Pin Female DIN
• Microphone Preamp
  Total Harmonic Distortion
  0.009% (1 kHz, -1 dBFS, Minimum Gain)
  Gain Control Range
  60 dB (± 1 dB)
  Maximum Input Level
  +10 dBu (±0.5 dBu, Minimum Gain)
  Phantom Power
  +48 VDC (10 mA Total)
  Frequency Response
  20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
  Input Impedance
  1.4 kΩ
  Equivalent Input Noise
  -126 dBu (A-Weighted, 150Ω, Maximum Gain)
• Main And Line Outputs
  Main And Line Outputs Maximum Level
  +10 dBu (1 kHz, Unity Gain, Z-Balanced)
  Main And Line Outputs Frequency Response
  20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
  Main And Line Outputs Total Harmonic Distortion
  0.003% (1 kHz, -1 dBFS, Unity Gain)
• Headphone Outputs
  Maximum Output
  40 mW/Channel at 56Ω
  Frequency Response
  20 Hz to 20 kHz, +0.5/-1.5 dB
  Total Harmonic Distortion
  0.01% (1 kHz, 0 dBFS, Loaded)
  Impedance Working Range
  32Ω to 300Ω
• Digital Audio
  Dynamic Range
  105 dB
  Bit Depth
  24 Bit
  Supported Sample Rates
  44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
