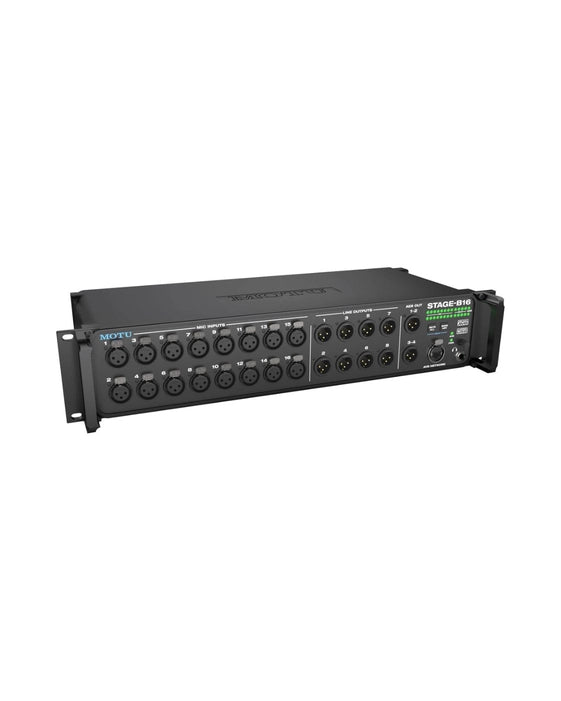

Motu Stage B16 - 16-Channel Stage Box and Audio Interface

The MOTU Stage B16 is a 16-channel stage box and audio interface with 16 XLR microphone preamps offering up to 63 dB of gain, 8 XLR line outputs, a 48 input digital mixer with DSP effects, and AVB and USB connection. It weighs 2.27 kg.

A stage box that is also a mixer

The 16 microphone preamps sit on the stage end, so microphone cables stay short and only one network or USB cable runs back to front of house. Inside, a 48 input digital mixer modelled on large format consoles provides 12 stereo buses, with reverb, 4-band EQ, gate and compression processed at 32-bit floating point.

Control is from a web app over Wi-Fi once a router is connected, so the mix can be adjusted from anywhere in the room.

Converters

Preamp gain is digitally controlled from 0 to +63 dB, and the microphone inputs measure 117 dB dynamic range, A-weighted. The 8 XLR line outputs measure 123 dB and reach +20 dBu, adjustable from -4 to +20. Two AES/EBU outputs on XLR carry 4 channels at up to 96 kHz, and a 1/4 inch headphone output handles monitoring.

Sample rates run from 44.1 to 192 kHz.

Connection and size

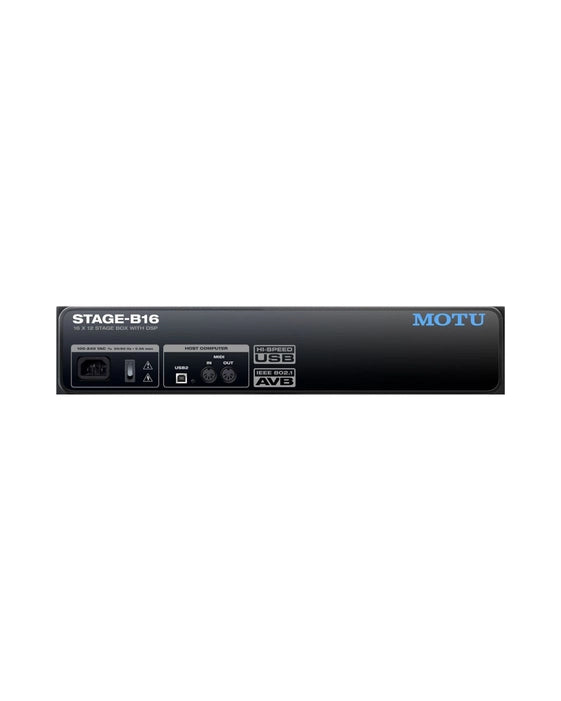

One RJ45 AVB/TSN Ethernet port connects to a computer or other MOTU AVB devices, and USB 2.0 is audio class compliant and works with iOS. Expansion to further MOTU interfaces goes through a MOTU AVB Switch.

The unit is 19 x 7 x 3.5 inches and weighs 2.27 kg.

Specifications

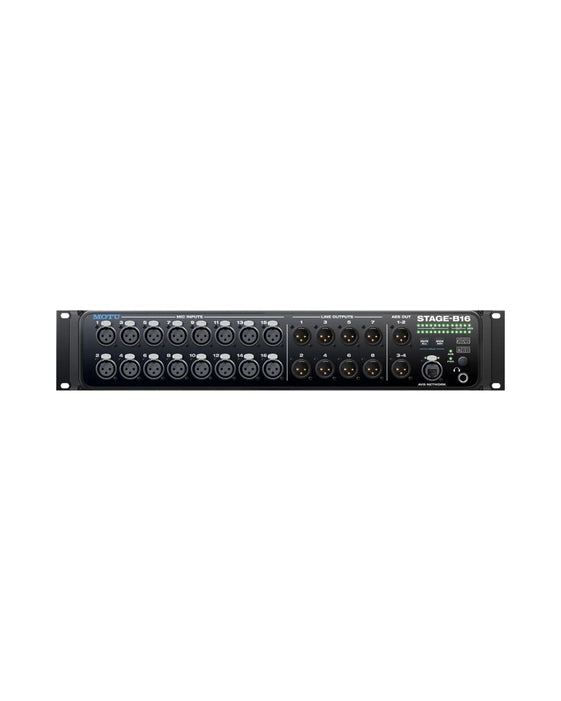

• Mic inputs: 16 x XLR, preamp gain 0 to +63 dB, digitally controlled
• Mic input dynamic range: 117 dB, A-weighted
• Line outputs: 8 x XLR, +20 dBu max, adjustable -4 to +20
• Line output dynamic range: 123 dB, A-weighted
• AES/EBU: 2 x XLR out, 4 channels, up to 96 kHz
• Headphone: 1 x 1/4 inch TRS
• Sample rates: 44.1 to 192 kHz
• Mixer: 48 inputs, 12 stereo buses
• DSP: Reverb, 4-band EQ, gate, compression, 32-bit floating point
• AVB: 1 x RJ45 AVB/TSN
• USB: USB 2.0, audio class compliant, iOS compatible
• Control: Web app over Wi-Fi via connected router
• Size: 19 x 7 x 3.5 inches
• Weight: 2.27 kg
