IK Multimedia iRig Pro Quattro I/O Deluxe Bundle Audio Interface
Product details
Always be ready in the field
Have you ever found yourself mid-session missing a key cable or connection? Or worrying before, during, or even after a shoot that your work could be compromised by technical issues?
iRig Pro Quattro I/O will put those concerns to rest forever. It’s a professional-grade 4-in / 2-out portable audio and MIDI interface packed with everything you need for pristine field recording, content creation, streaming, podcasting and performing. Handle anything life throws at you without breaking a sweat.
Compact size, full stereo sound
The iRig Pro Quattro I/O will easily find a home in your camera bag or backpack. It comes with all you need to get started including a set of batteries, cables and camera stand adapter. Or choose the iRig Pro Quattro I/O Deluxe, which adds a pair of custom iRig XY mics for stunning stereo sound every time, without the bulk or expense of a larger mic setup. It also includes a windscreen, power supply unit and carrying case.
Mono, Stereo or Multichannel?
iRig Pro Quattro does all 3 at the flip of a switch. Stereo and Mono modes pre-mix up to 4 audio sources (RCA / 3.5 mm stereo line inputs (+ Loopback), XLR combo inputs and MEMS microphone) down to a stereo or mono track, which can be sent to your choice of streaming apps, DSLR camera or sound system.
Switching to multichannel mode, the XLR mic/Hi-Z instrument and mic/line combo jacks or RCA / 3.5 mm stereo line inputs are routed to channels 1 to 4 respectively, giving you 4 channels of audio to send to recording apps such as GarageBand or any DAW.
Custom mics for deluxe results
iRig MIC XY stereo microphones are available separately or as part of the iRig Pro Quattro I/O Deluxe edition. These condenser mics use a cardioid polar pattern in an XY formation for trouble-free stereo sound recording. You can also position the capsules in divergent mode, which is ideal for taking interviews.
With a frequency response of 20 Hz to 20 kHz and dynamic range up 145 dB SPL, your field recordings will always be natural, immersive and protected by Quattro I/O’s safety channel feature.
Always perfect recordings
In STEREO and MONO mode, inputs 3 and 4 can be used as safety channels: recording the same signal as input 1 and 2, but reduced by 12 dB as a backup in case the sound source unexpectedly overloads the main channels. Always succeed your mission to record an important event.
Add effects with Loopback+
Multichannel mode offers another advantage. Loopback+ is a powerful new feature that lets you route either or both channels 3 and 4 to audio apps such as MixBox, AmpliTube or VocaLive for processing and then route their outputs through the Loopback feature and into channels 1+2 going to your streaming app.
Now you can actually use these apps on your iOS or Android device as a front-end processor for all streaming apps. It’s like using them as a plug-in for more creative and professional-sounding streams.
Go pro all the way
For a little more, you get a lot with the iRig Pro Quattro I/O Deluxe edition. The value of the iRig XY stereo mic capsules alone is worth the upgrade. In addition to the pair of mics you’ll get the optional power supply, which you can also use to keep your iOS device charged during extended sessions. Plus you’ll get a custom carrying case to protect and transport your Quattro I/O and XY mics wherever your field work takes you.
Specifications

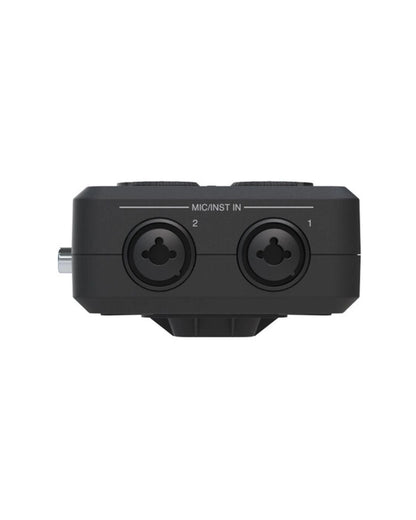

- Microphone Inputs 1-2
2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Input impedance: 1 kOhms
Input level, min gain: 0 dBFS is obtained with a -1.5 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -55 dBu signal at the XLR input
Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
Dynamic Range: 103 dB(A), min gain
Phantom power: 48V / -4V - Built-in microphone
Type: MEMS
Polar pattern: omnidirectional
Frequency response: from 30 Hz to 20 kHz
Max SPL: 110 dBSPL
Sensitivity: -41.5 dB (1 kHz, 94dB SPL) - Instrument Inputs 1-2
2 x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
Input impedance: 1 MOhms
Input level, min gain: 0 dBFS is obtained with a +10 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -43 dBu signal at the TS input
Frequency response: from 7 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
Dynamic range: 103 dB(A), min gain - Microphone Inputs 3-4
2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Input impedance: 1 kOhms
Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
Dynamic range: 101 dB(A), min gain
Phantom power: 48V / -4V - Line Inputs 3-4 (balanced)
2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Input impedance: 1 kOhms
Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
Dynamic range: 101 dB(A), min gain
Phantom power: 48V / -4V - Line Inputs 3-4 (unbalanced)
Unbalanced, TRS 3.5 mm stereo Jack and RCA
Input impedance: 2.1 kOhms
Nominal input level: -3.5 dBV (-10 dBV with 6.5 dB of headroom)
Frequency response: from 16 Hz to 46 kHz within 3 dB (96 kHz sample rate)
Dynamic range: 93 dB(A) - Line Outputs (balanced)
2 x balanced, 3-pin XLR, Pin 2: hot / Pin 3: cold / Pin 1: ground
Floating balanced outputs with automatic level compensation when working in unbalanced mode
Output impedance: 150 Ohms balanced
Output level: 0 dBFS corresponds to +12 dBu
Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
Dynamic range: 100 dB(A)
Channels crosstalk: 88 dB(A) - Stereo Output (unbalanced)
Unbalanced, TRS 3.5 mm stereo Jack
Output impedance: 150 Ohms balanced
Output level: 0 dBFS corresponds to +12 dBu
Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
Dynamic range: 100 dB(A)
Channels crosstalk: 88 dB(A) - Headphones Output
TRS 3.5 mm stereo Jack
Output impedance: 22 Ohm
Output level: 26 mW/channel (32 Ohm load)
Frequency response: from 15 Hz to 44 kHz within 3 dB (96 kHz sample rate)
Dynamic range: 100 dB(A) - Common
AD and DA Resolution: 24-bit
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power: USB bus power, battery power (4 x AA), DC power supply (9VDC) or external USB power supply (5VDC, 1A min)
Device Connection: Mini-DIN
Size: 166 mm / 6.54″ x 92 mm / 3.62″ x 43 mm / 1.69″
Weight: 325 g / 0.72 lb (batteries excluded)
Battery Life:
• Recording - Max load*: 1 hours, 30 minutes (Alkaline); 3 hours (NiMH rechargeable)
• Playback - Min load**: 2 hours, 30 minutes (Alkaline); 4 hours (NiMH rechargeable)
