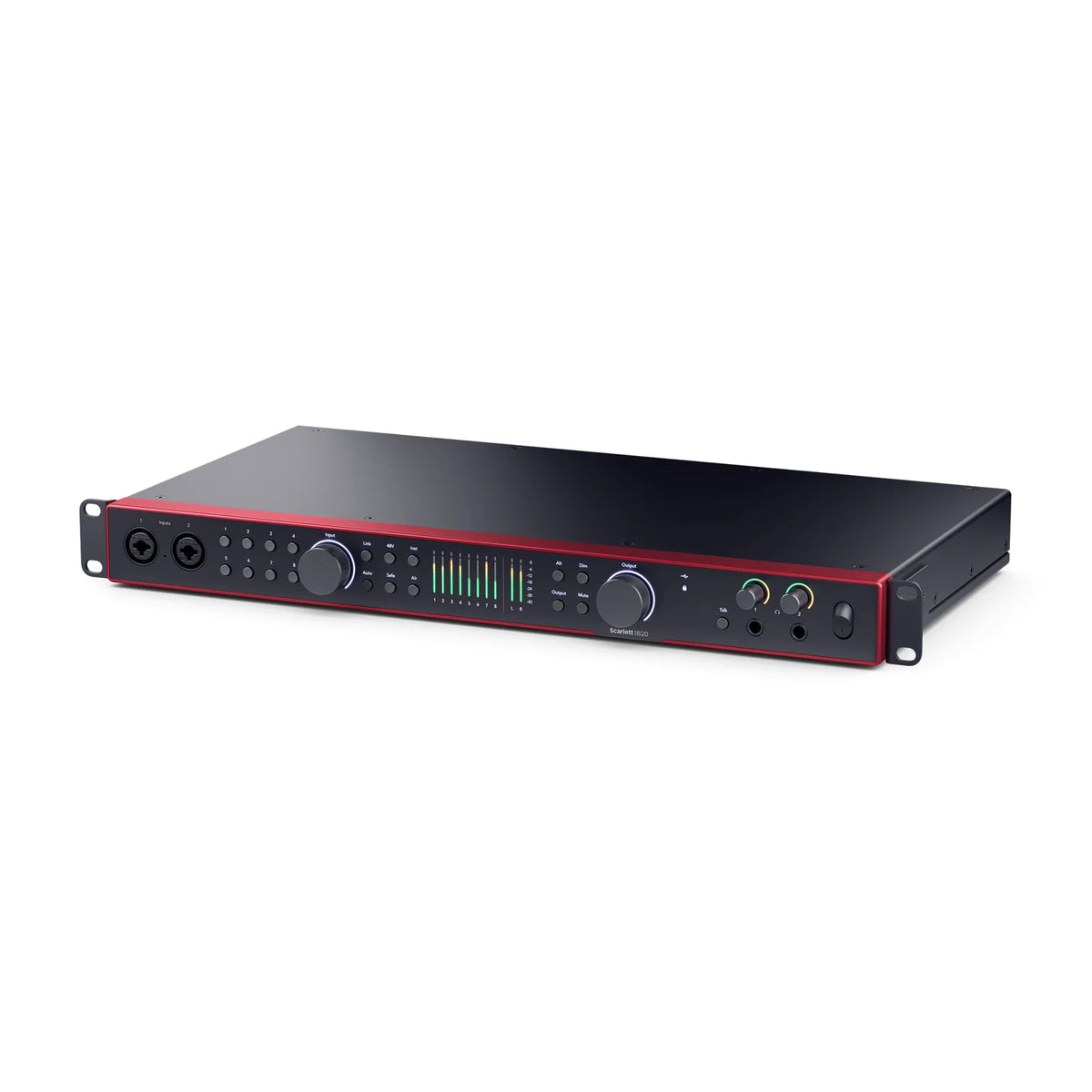

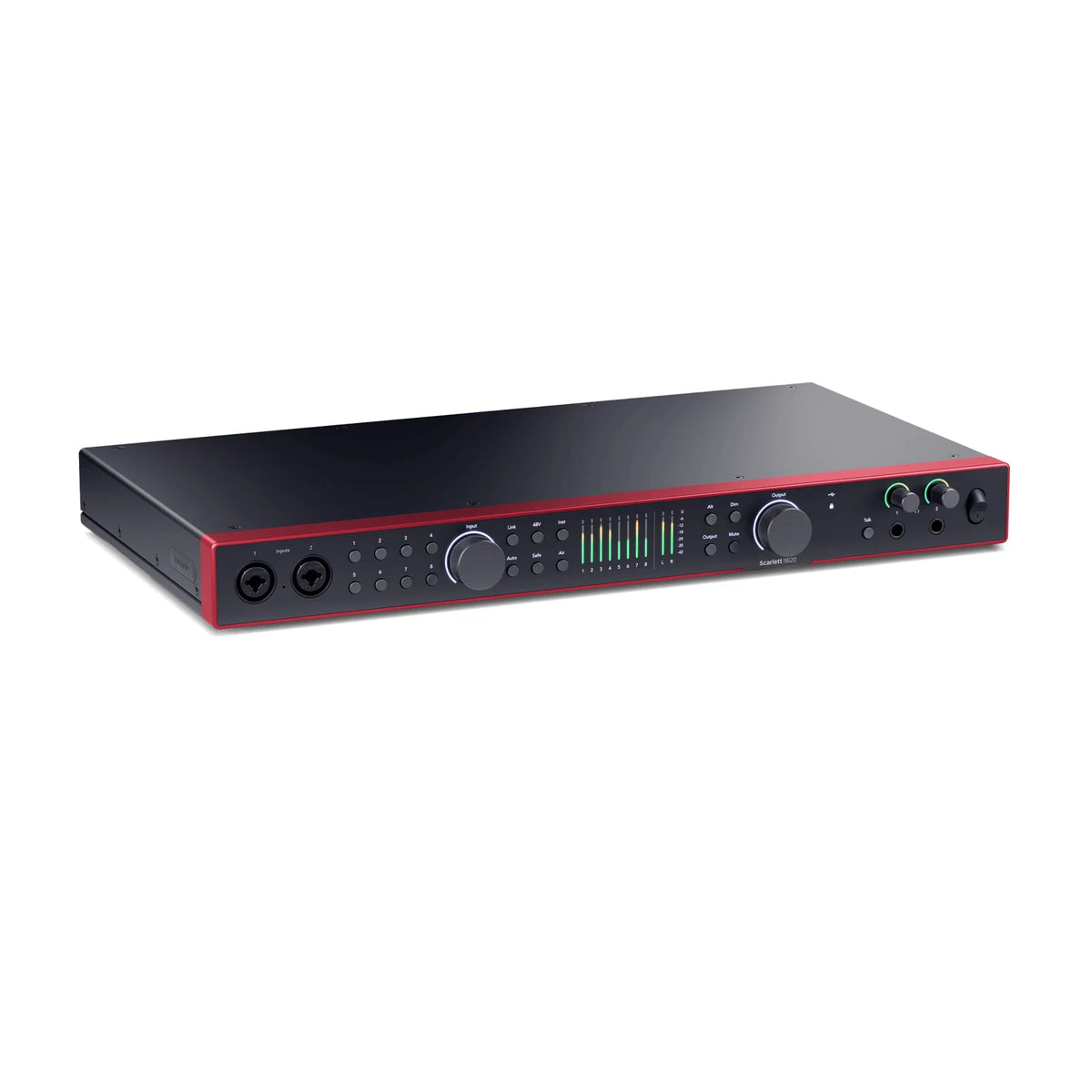

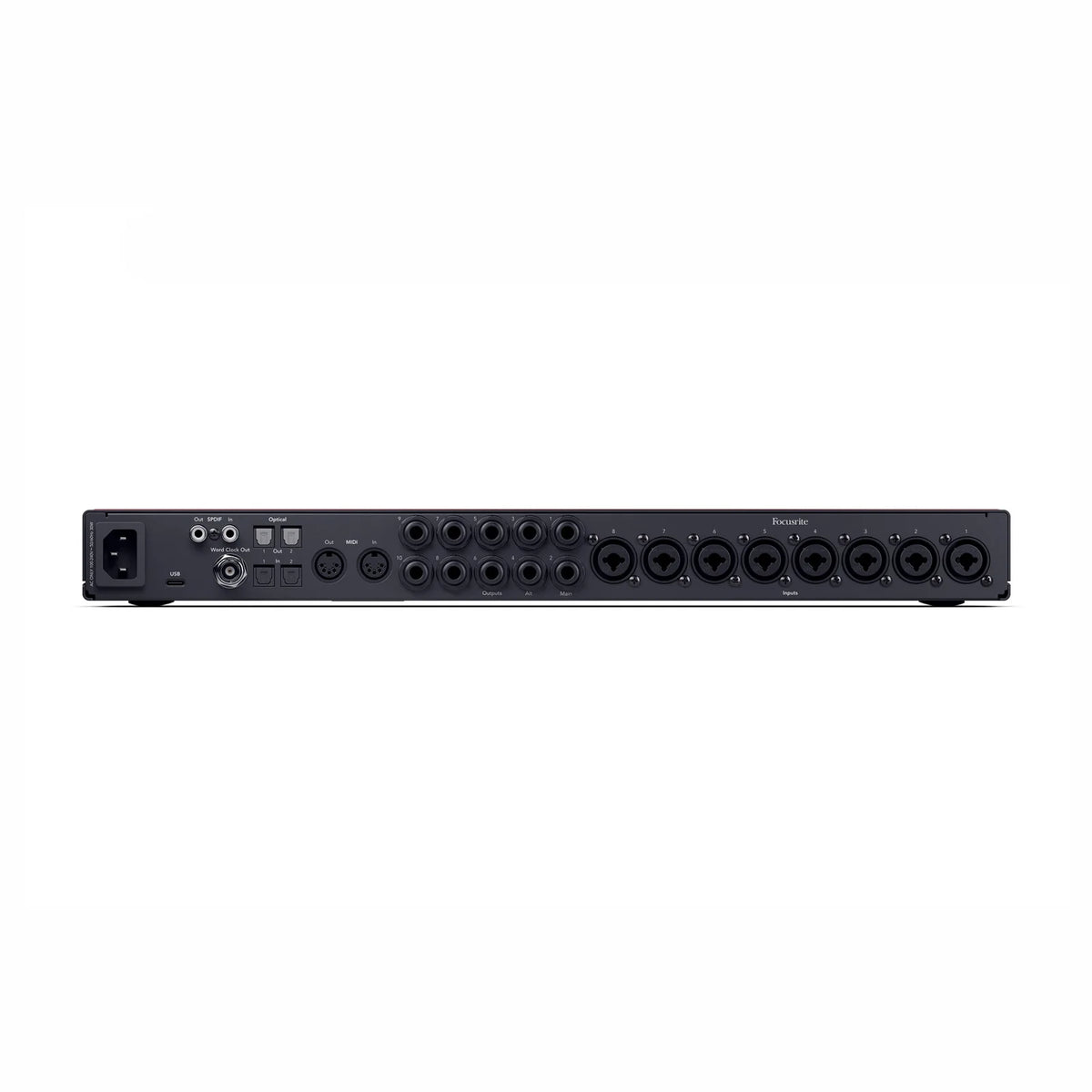

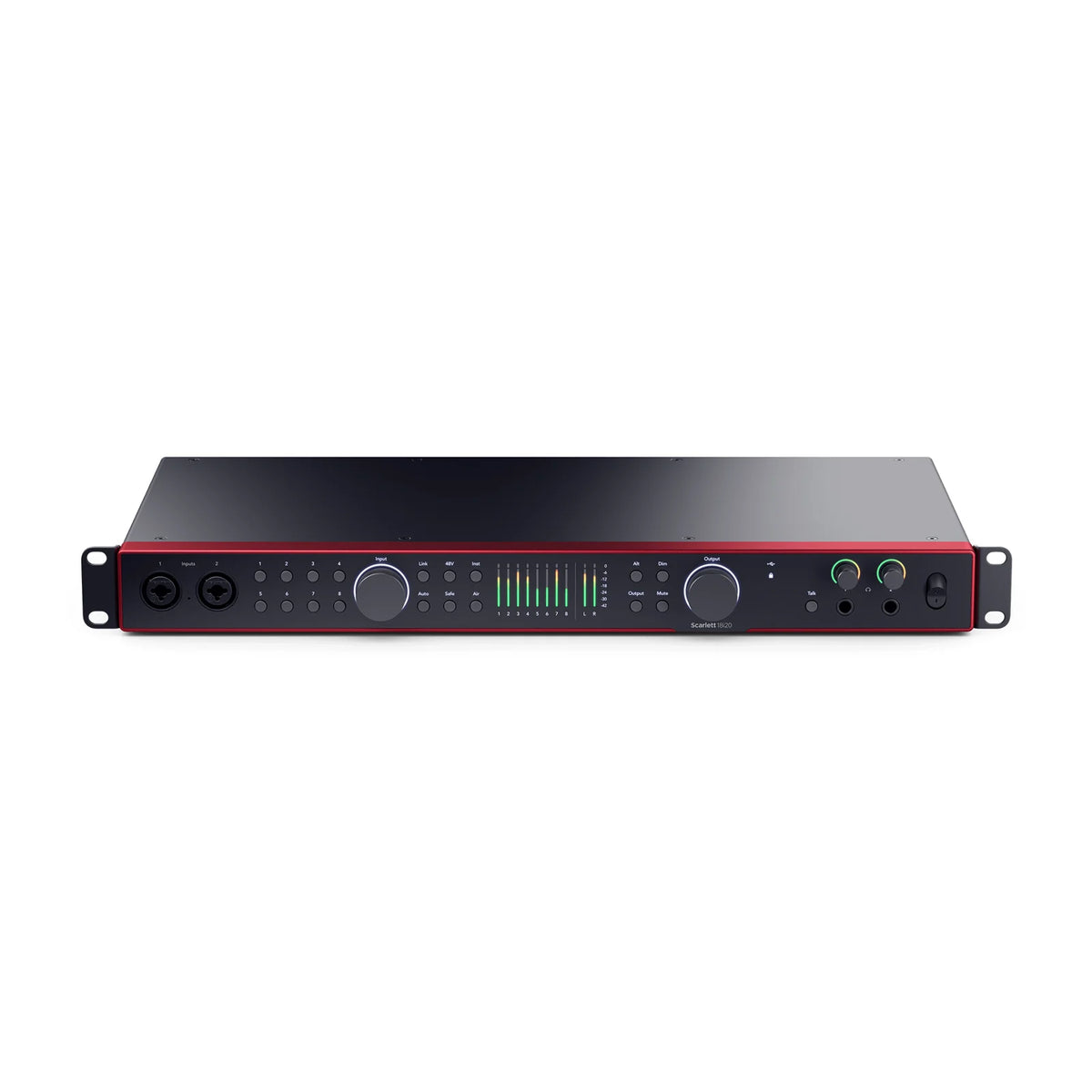

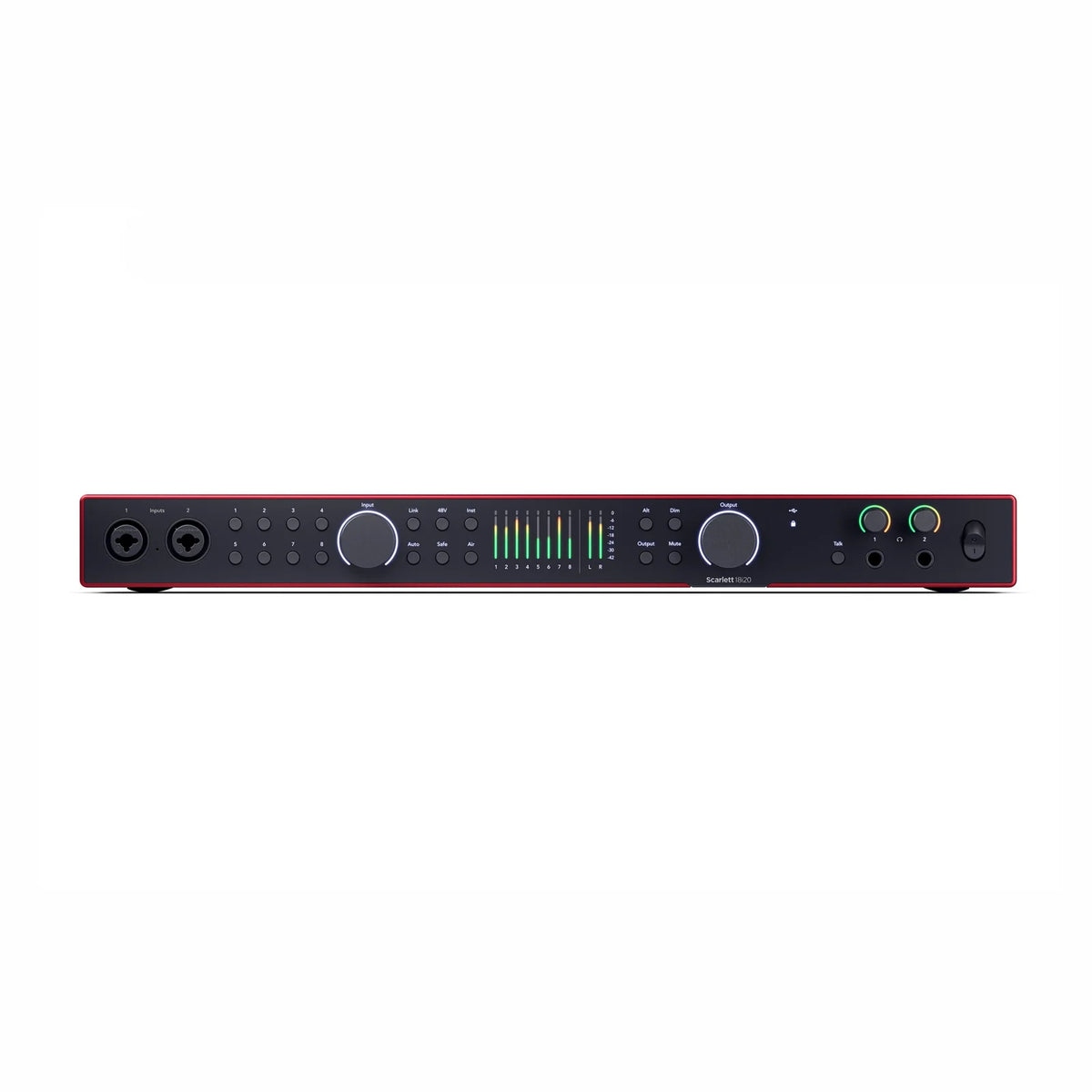

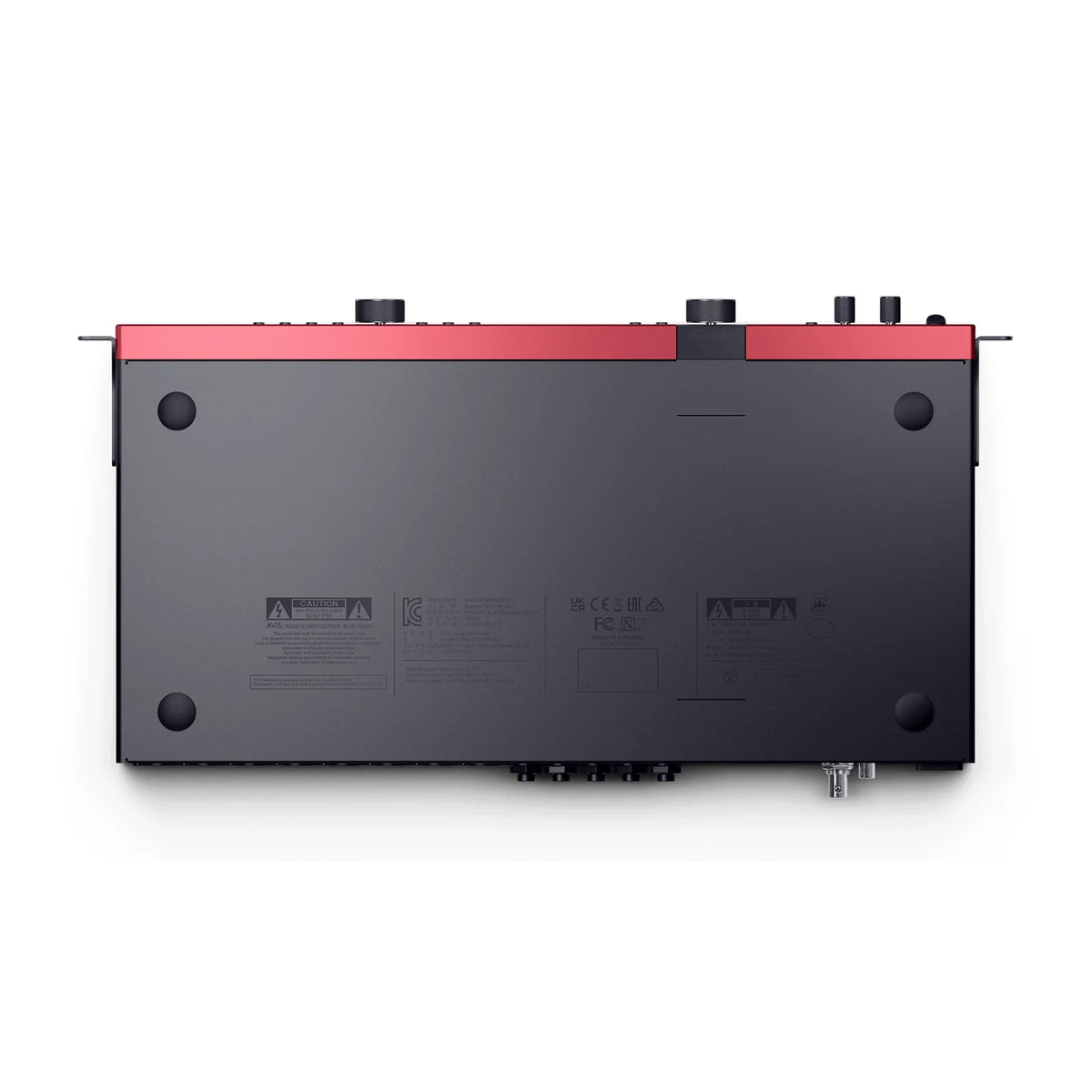

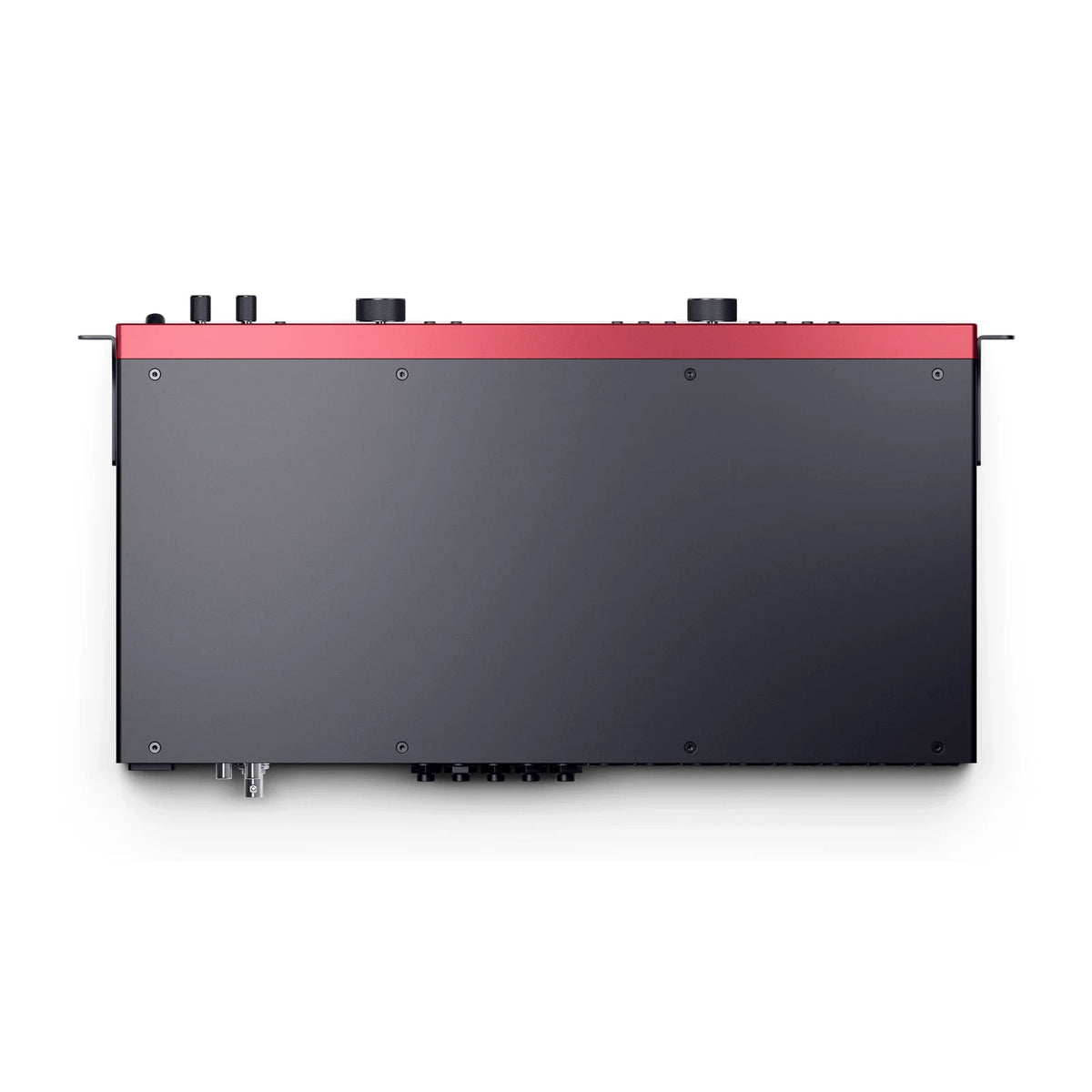

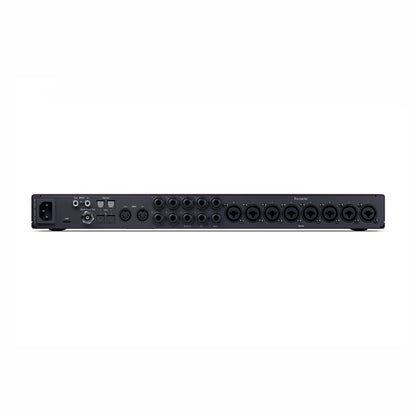

Focusrite Scarlett 18i20 USB-C Audio/MIDI Interface (4th Generation)

18i20 is the studio hub for engineers who need serious I/O. Whether you’re recording drums, a live session, or racks of hardware synths, you’ve got everything you need with eight of our finest ultra-low-noise mic preamps, plus line, instrument, MIDI, S/PDIF, and ADAT connections. With 26 inputs and 26 outputs, you’re ready for whatever your session demands.

Key features

• Eight ultra-low-noise mic/line preamps
• Two front-panel mic/line and instrument preamps
• Two Air preamp modes for classic console sound
• Clip Safe and Auto Gain modes
• 10 line outputs inc. alt speaker switching
• Up to 16 channels of ADAT I/O
• S/PDIF, MIDI, and Word Clock
• Includes Hitmaker Expansion and DAW software bundle

Eight of our most detailed, ultra-low-noise preamps

Connect your studio to 18i20’s remote-controlled preamps — Scarlett’s most transparent and detailed ever. 69dB of gain range provides all the headroom you'll need to get the best result from the most intense multi-track recordings.

Auto Gain and Clip Safe

Let 18i20 handle your levels. Auto Gain will set all eight microphone preamp levels instantly and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.

All the I/O you need

Play your instruments

Connect a guitar directly to 18i20’s Hi-Z inputs for an amp-like feel, plug synths and grooveboxes into the eight line inputs, or route your favourite outboard gear through the ten line outputs.

Control MIDI devices

Use 18i20 as a MIDI interface to receive and send data to your favourite external MIDI-controllable equipment.

Expand your setup

Increase your channel count with up to 16 additional inputs and outputs via ADAT and two via S/PDIF.

Mix your way with independent outputs

Take full control of your routing and mixing preferences using the Focusrite Control 2 apps, anywhere in the studio.

Dial in the perfect headphone mix for the artist, or route the signal directly to outboard gear to put the finishing touches on your mix.

Get that big console sound with two re-engineered Air modes

Presence mode boosts your signal’s high-end, bringing the sound to the front of the mix. Create intimate vocal recordings, capture every detail of acoustic guitars, and hear your drum overheads shimmer.

Presence and Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.

Huge 122dB dynamic range for incredible recordings

Scarlett delivers incredible audio quality, with converters direct from our flagship RedNet interfaces — as found in high-end studios around the world.

Studio sound anywhere

Powerful sound, powerful control

Two custom-designed headphone amps deliver clear, powerful sound for high-impedance headphones, offering the best playback ever from a Scarlett.

A built-in talkback mic ensures seamless communication to the artists, while alt monitor switching lets you A/B your mixes between two speaker pairs.

What's in the box

• Scarlett 18i20 audio interface
• Rack Ears
• 1.5m USB-C to USB-C cable
• IEC power cable

Specifications

• Number of Microphone Preamps: 8
• Phantom Power: Yes (Independent)
• Instrument Inputs: 2
• Line Inputs: 8
• Air Mode: Yes
• Auto Gain: Yes
• Clip Safe: Yes
• Line Outputs: 10
• Headphone Outputs: 2
• ADAT Inputs: 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
• ADAT Outputs: 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
• SPDIF Inputs: 1
• SPDIF Outputs: 1
• MIDI Inputs: 1
• MIDI Outputs: 1
• Talkback: Yes
• Loopback: Yes
• Connectivity: USB Type-C
• Protocol: USB 2.0
• Form Factor: Desktop / Rack Mountable (1U)
• Simultaneous I/O: 26 x 26
• A/D Resolution: 24-bit/192 kHz
• Bus Powered: No
• Height: 46.55mm
• Width: 442mm
• Depth: 259.73mm
• Weight: 3.304kg
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
