Focusrite iTrack Solo Desktop 2x2 USB/Lightning Audio Interface

Product details

SIMPLE PROFESSIONAL RECORDING ON MAC, PC AND IPAD

Record However You Want

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

PLUG YOUR INSTRUMENT STRAIGHT IN

Start recording the moment inspiration strikes, by plugging any instrument or mic straight in.

Polish Your Sound

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

Make Some Noise

iTrack Solo isn’t just for recording. Connect your speakers, crank up the volume and totally immerse yourself in the sound of your music, apps, video games, movies – or anything else.

Maintain Your Feng Shui

Fewer cables means less clutter. You only need to plug iTrack Solo into the mains if you’re using it with iPad. Otherwise, your USB connection will power it.

IDEAL FOR IPAD

Certified by Apple and compatible with any Lightning™ iPad: iPad Pro, iPad mini, iPad mini with Retina Display, iPad (4th gen and up) and iPad Air.

YOU ALREADY KNOW HOW

You don't need to learn anything new. Record your songs directly into Garageband, Cubasis, Auria and many other apps.

THE SOUND OF SUCCESS

Capture and play back your sound with pristine quality, using the very latest in digital audio technology.

LOOK AS GOOD AS IT SOUNDS

The gorgeous bead-blasted aluminium case is tough enough to throw in your bag and take with you anywhere.

Specifications

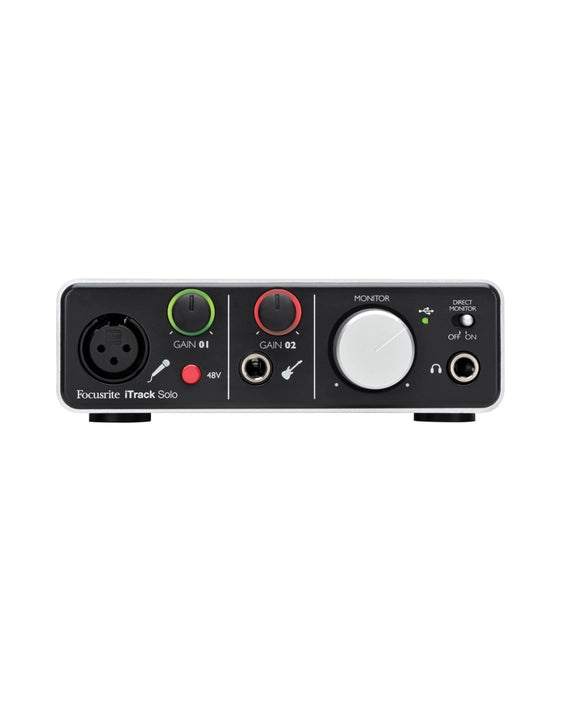

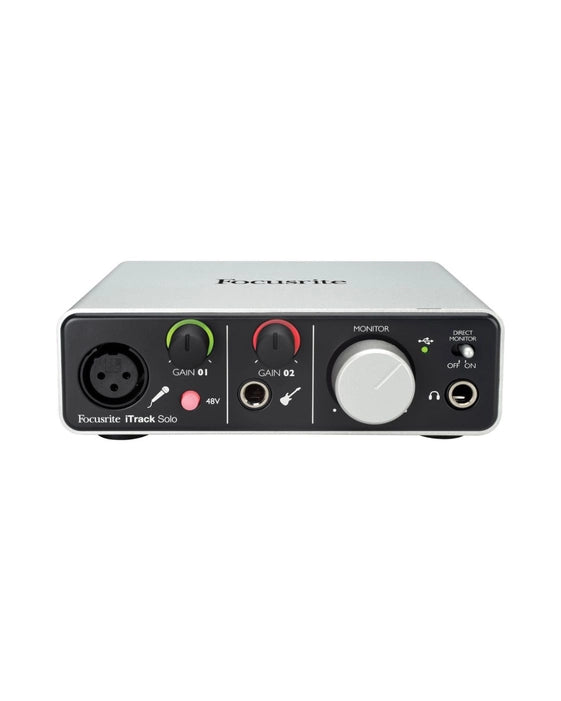

• FRONT PANEL
  1 microphone input - XLR
  1 Instrument input ¼’ unbalanced
  2 Gain knobs
  2 Gain halo signal indicators
  48V Phantom power switch
  Direct monitor switch
  Large monitor level dial (controls headphone and line level outputs)
  USB Connection LED indicator
  Headphone output ¼’ TRS Jack

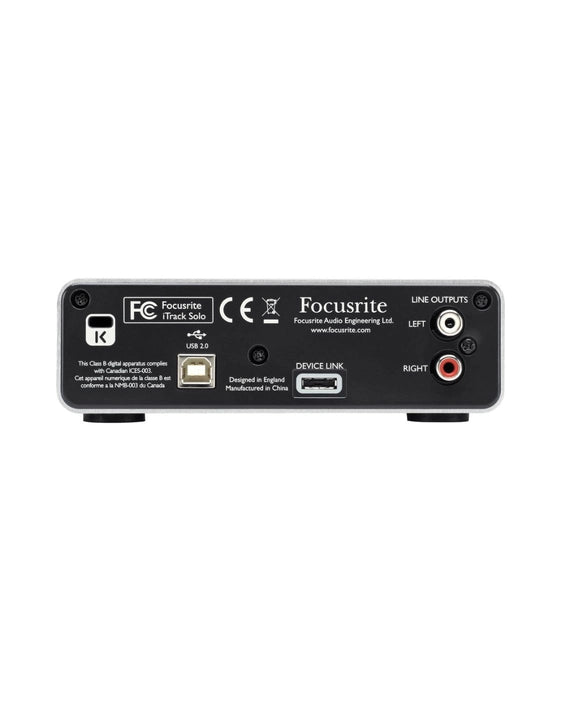

• REAR PANEL
  2 unbalanced monitor outputs - RCA Phono
  DEVICE LINK port (to connect iTrack Solo to iPad)
  USB 2.0 Port
  Kensington Lock slot
• INCLUDED SOFTWARE
  Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.
  Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).
• MIC ANALOGUE INPUT PERFORMANCE
  Frequency Response
  20Hz - 20kHz +/- 0.2 dB
  THD+N
  < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
  Equivalent Input Noise (EIN)
  < -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter)
  Gain Range
  +10dB to +55dB
  Max Input Level
  +4dBu
• INSTRUMENT
  Frequency Response
  20Hz - 20kHz +/- 0.2dB
  THD+N
  0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter)
  Noise
  -87dBu (22Hz/22kHz bandpass filter)
  Gain Range
  -10dB to +55dB
  Max Input Level
  +2dBu
• ANALOGUE OUTPUT PERFORMANCE
  Nominal Output Level
  0dBFS = 10dBu, unbalanced
  Frequency Response
  20Hz - 20kHz +/- 0.2dB
  THD+N
  < 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)
• DIGITAL PERFORMANCE
  Clock sources
  Internal clock only
  A-D Dynamic Range
  105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
  D-A Dynamic Range
  105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
  Supported sample rates
  44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC
  44.1 KHz, 48 KHz - iPad
• CROSSTALK
  Input to Input
  Better than 90dB
  Output to Output
  Better than 90dB
  Input to Output
  Better than 85dB
• INPUT METERING
  Ring LED lit Green Signal present (-24 dBFS)
  Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second
• WEIGHT AND DIMENSIONS
  Height 45 mm / 1.77'
  Width 150 mm / 6'
  Depth 100 mm / 4'
  Weight 500 g / 1 lb
