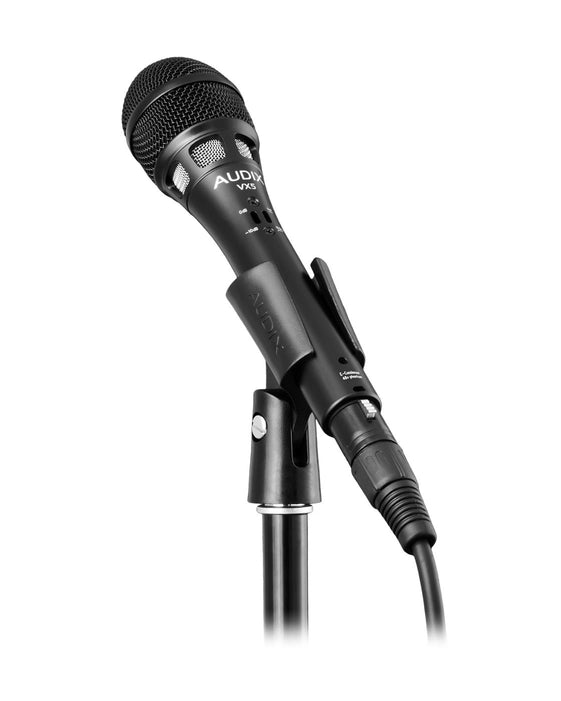

Audix VX5 - Cardioid Handheld Condenser Microphone

Product details

The VX5 is a multi-purpose, professional vocal condenser microphone designed for stage, studio, and broadcast applications. With an ability to duplicate studio-quality sound on stage, the VX5 has a smooth and accurate frequency response, resistance to feedback, and handles very high SPLs without distortion.

Designed with a tight and uniformly controlled supercardioid polar pattern, the VX5 condenser vocal microphone helps isolate vocals from the rest of the stage. Other features include a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grille with a multi-stage pop filter, and a -10 dB pad and bass roll-off filter. The VX5 will handle SPLs in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages.

In addition to vocal applications, the VX5 supercardioid microphone is designed to capture instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats, and pianos.

The VX5 requires 18 – 52 V phantom power.

Specifications

• Transducer Type
  Pre-Polarized Condenser
• Frequency Response
  40 Hz – 16.5 kHz
• Polar Pattern
  Supercardioid
• Output Impedance
  150 ohms
• Sensitivity
  5 mV / Pa @ 1k
• Equivalent Noise Level
  26 dB (A-weighted)
• Signal to Noise Ratio
  68 dB
• Off-Axis Rejection
  >20 dB
• Maximum SPL
  ≥140 dB (w/ -10 pad)
• Power Requirements
  9-52 V
• Connector
  3-pin XLRm
• Polarity
  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
  Zinc Alloy & Machined Brass / Black Finish
• Weight
  277 g / 8 oz
• Length
  181 mm / 7.1 in

WHAT’S IN THE BOX?

• 1x VX5 Vocal Microphone
• 1x MC1 Microphone Clip
• 1x P1 Carrying pouch
