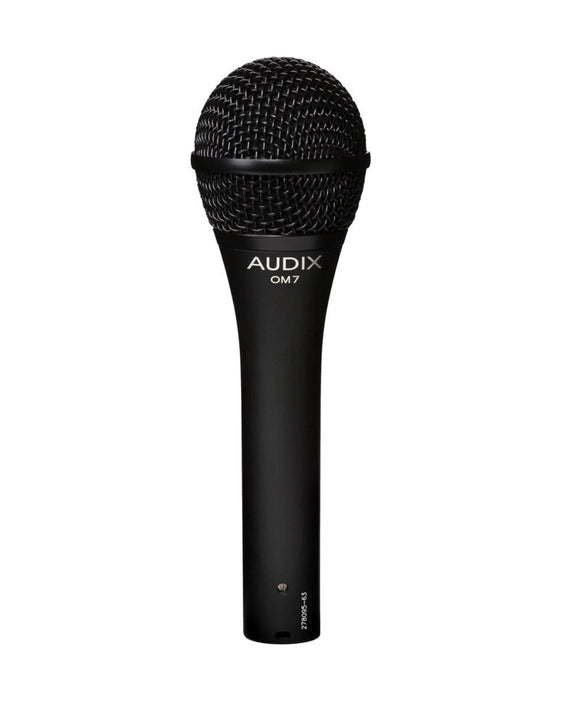

Audix OM7 Handheld Hypercardioid Dynamic Microphone

Product details

The OM7 vocal dynamic microphone is used by professional sound companies, front of house and mixing engineers as well as high-profile fixed installations. The OM7 provides unprecedented gain before feedback on concert level stages without sacrificing sound quality. In addition, the mic is very resistant to feedback on extremely loud stages and for performers who tend to “cup” the microphone with both hands.

In order to achieve these extraordinary performance benefits, the OM7 dynamic vocal microphone is designed with an unconventionally low output level (8-10 dB lower than typical dynamic microphones). This low output level acts as a natural “pad” at the capsule in order to maintain high fidelity at the source. The OM7 hypercardioid microphone is best suited for use with high-quality mixing consoles that have plenty of headroom to compensate for the low gain.

Specifications

• Transducer Type
  Dynamic
• Frequency Response
  48 Hz – 19 kHz
• Polar Pattern
  Hypercardioid
• Output Impedance
  50 ohms
• Sensitivity
  0.8 mV / Pa @ 1k
• Capsule Technology
  VLM Type C
• Off-Axis Rejection
  >30 dB
• Maximum SPL
  ≥144 dB
• Power Requirements
  None
• Connector
  3-pin XLRm
• Polarity
  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
  Zinc Alloy / Black Finish
• Weight
  307 g / 10.8 oz
• Length
  176 mm / 6.9 in

Whats In The Box

• 1x OM7 Vocal Microphone

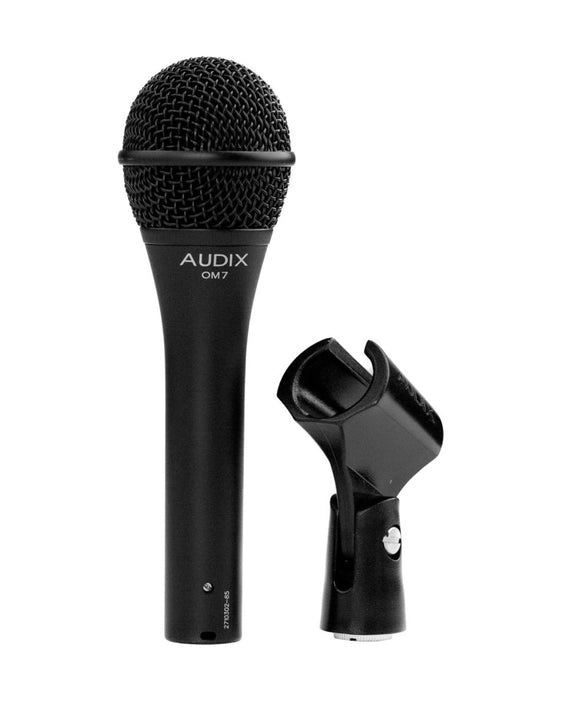

• 1x MC1 Microphone Clip
• 1x P1 Carrying pouch
