Product details

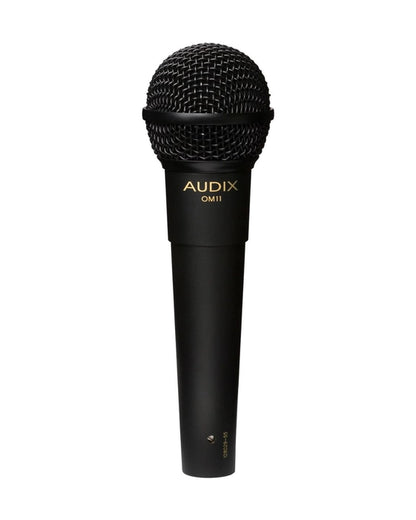

Designed, machined, assembled, and tested by Audix in the USA, the OM11 vocal dynamic microphone was first issued in 1985 as the OM1. This microphone is a dynamic vocal microphone used for a wide variety of stage, studio, and broadcast applications. Its sharp, crisp vocal sound, resistance to feedback, and ability to handle high SPLs without distortion are trademarks of the OM11.

The OM11 dynamic vocal microphone is designed with a tight, uniformly controlled hypercardioid polar pattern which helps isolate the vocals on stage. The response of the OM11 is tailored to cut through the mix, providing extra presence and articulation to the vocals even at very high stage volumes. In addition to having extremely low handling noise, the OM11 hypercardioid microphone is well balanced, comfortable to hold, and durable.

Designed, machined, assembled, and tested by Audix in the USA.

Specifications

• Transducer Type
  Dynamic
• Frequency Response
  50 Hz – 18 kHz
• Polar Pattern
  Hypercardioid
• Output Impedance
  200 ohms
• Sensitivity
  1.9 mV / Pa @ 1k
• Capsule Technology
  VLM Type C
• Off-Axis Rejection
  >30 dB
• Maximum SPL
  ≥140 dB
• Power Requirements
  None
• Connector
  3-pin XLRm
• Polarity
  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
  Zinc Alloy / Black Finish
• Weight
  370 g / 13 oz
• Length
  179 mm / 7 in

Whats In The Box

• 1x OM11 Vocal Microphone
• 1x MC1 Microphone Clip
• 1x P1 Carrying pouch
