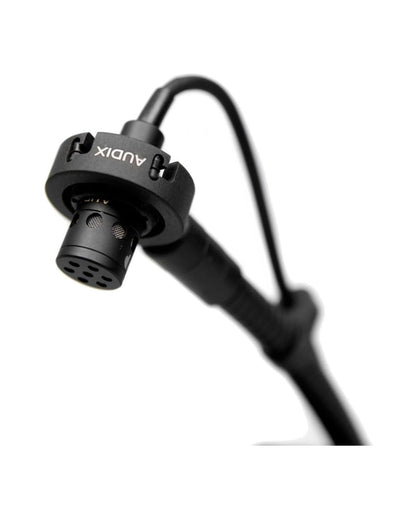

Audix MicroD Hypercardioid Condenser Instrument Microphone

Product details

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range.

This microphone is lightweight, compact, and simple to use. The MicroD is housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroD hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system.

Designed, machined, assembled, and tested by Audix in the USA.

Specifications

• Transducer Type
  Pre-Polarized Condenser
• Frequency Response
  40 Hz – 20 kHz
• Polar Pattern
  Hypercardioid
• Output Impedance
  250 ohms
• Sensitivity
  5.6 mV / Pa @ 1k
• Equivalent Noise Level
  24 dB
• Signal to Noise Ratio
  70 dB
• Maximum SPL
  ≥140 dB
• Power Requirements
  9 – 52 V phantom
• Connector
  3-pin mini to 3-pin XLRm (APS910)
• Polarity
  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
  Machined Brass Capsule / Black Finish
• Gooseneck
  Flexible Steel
• Weight
  47 g / 1.6 oz
• Length
  30 mm / 1.14 in

Whats In The Box

• 1x MicroD Instrument Microphone
• 1x 6′ Shielded Cable
• 1x DVICEMICRO Optional Flexible Mini-gooseneck with Springloaded Rim
• Mount Clamp
• 1x APS910 48 V Phantom Power Adapter
• 1x WS10 External windscreen
• 1x P1 Carrying Pouch
