Audix ADX20IP Cardioid Condenser Instrument Microphone

Product details

The ADX20iP miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.

The ADX20iP has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.

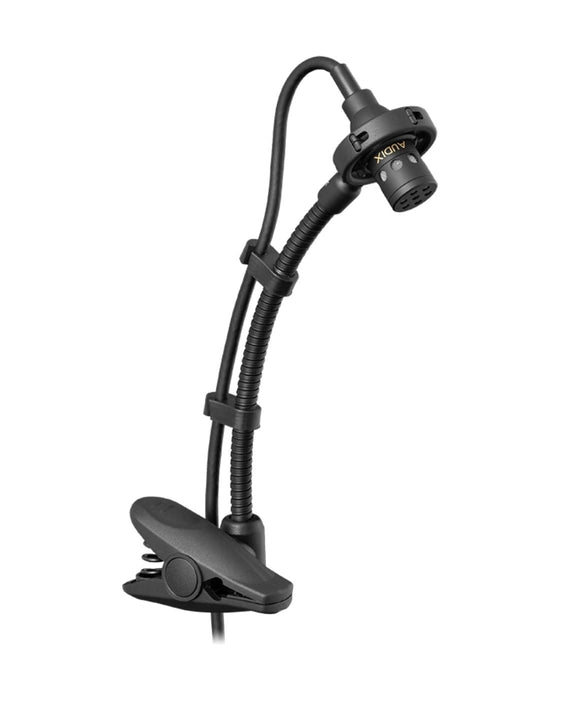

The ADX20iP condenser instrument microphone is lightweight, compact, and simple to use. Included with the ADX20iP is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.

Designed, machined, assembled, and tested by Audix in the USA.

Specifications

• Transducer Type
  Pre-Polarized Condenser
• Frequency Response
  40 Hz – 20 kHz
• Polar Pattern
  Cardioid
• Output Impedance
  250 ohms
• Sensitivity
  Cardioid – 6 mV / Pa @ 1k Hypercardioid – 5.6 mV / Pa @1k
• Equivalent Noise Level
  <29 dB (A-weighted)
• Signal to Noise Ratio
  >65 dB
• Maximum SPL
  ≥135 dB
• Power Requirements
  9-52 V phantom
• Connector
  Shielded 6’ terminating to a miniature 3 pin XLRf
• Polarity
  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
• Materials / Finish
  Machined Brass Capsule / Black Finish
• Weight
  48 g / 1.7 oz
• Length
  29 mm / 1.14 in
