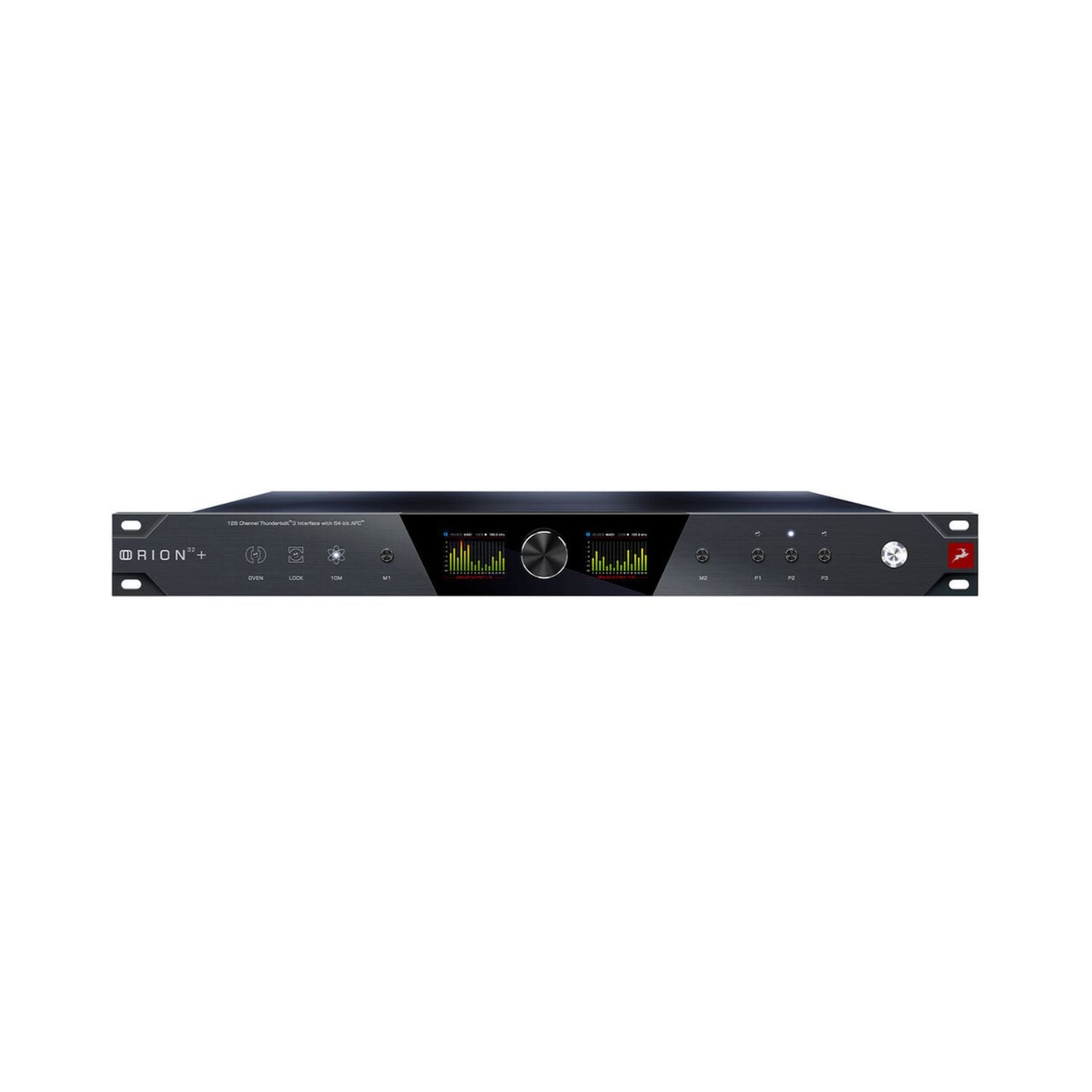

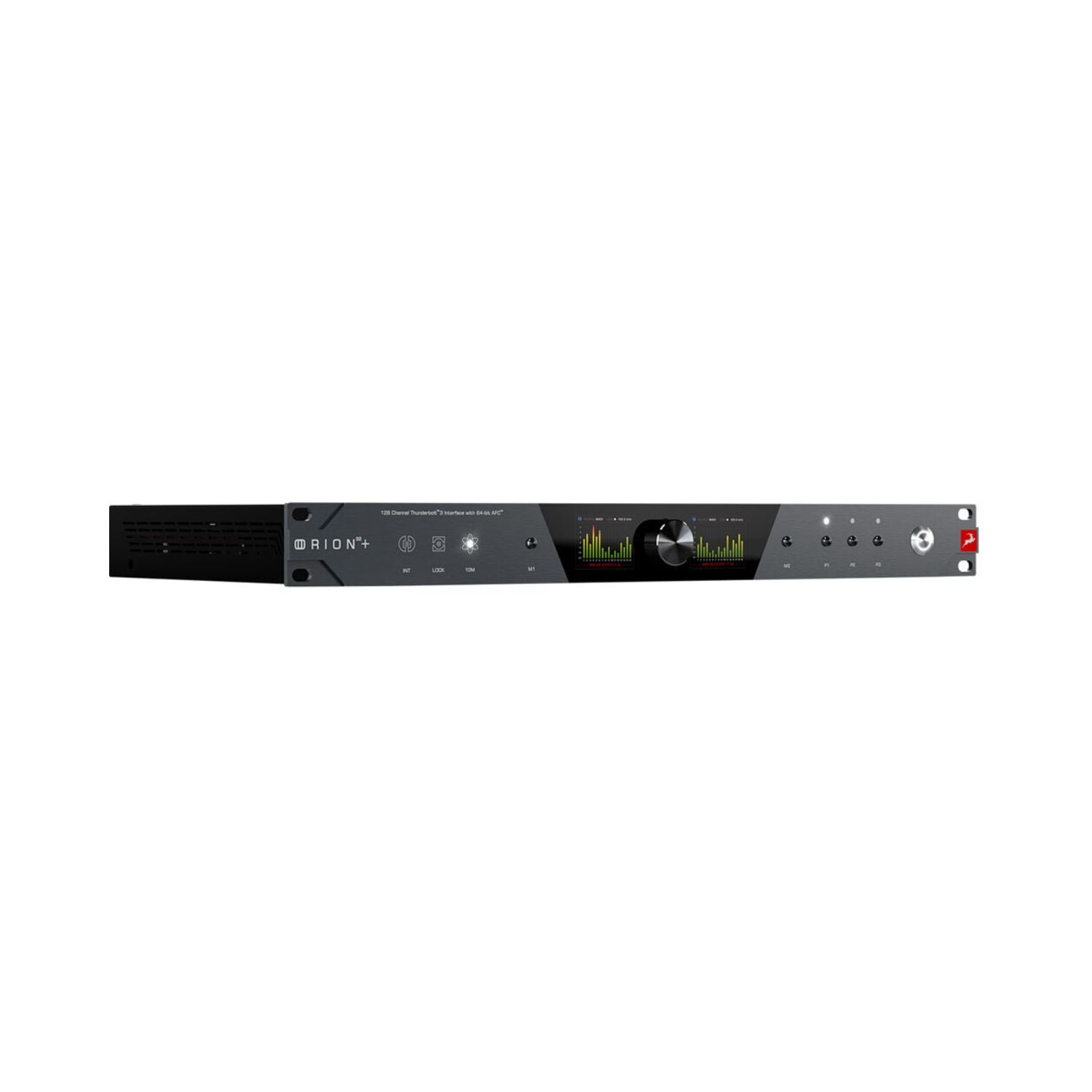

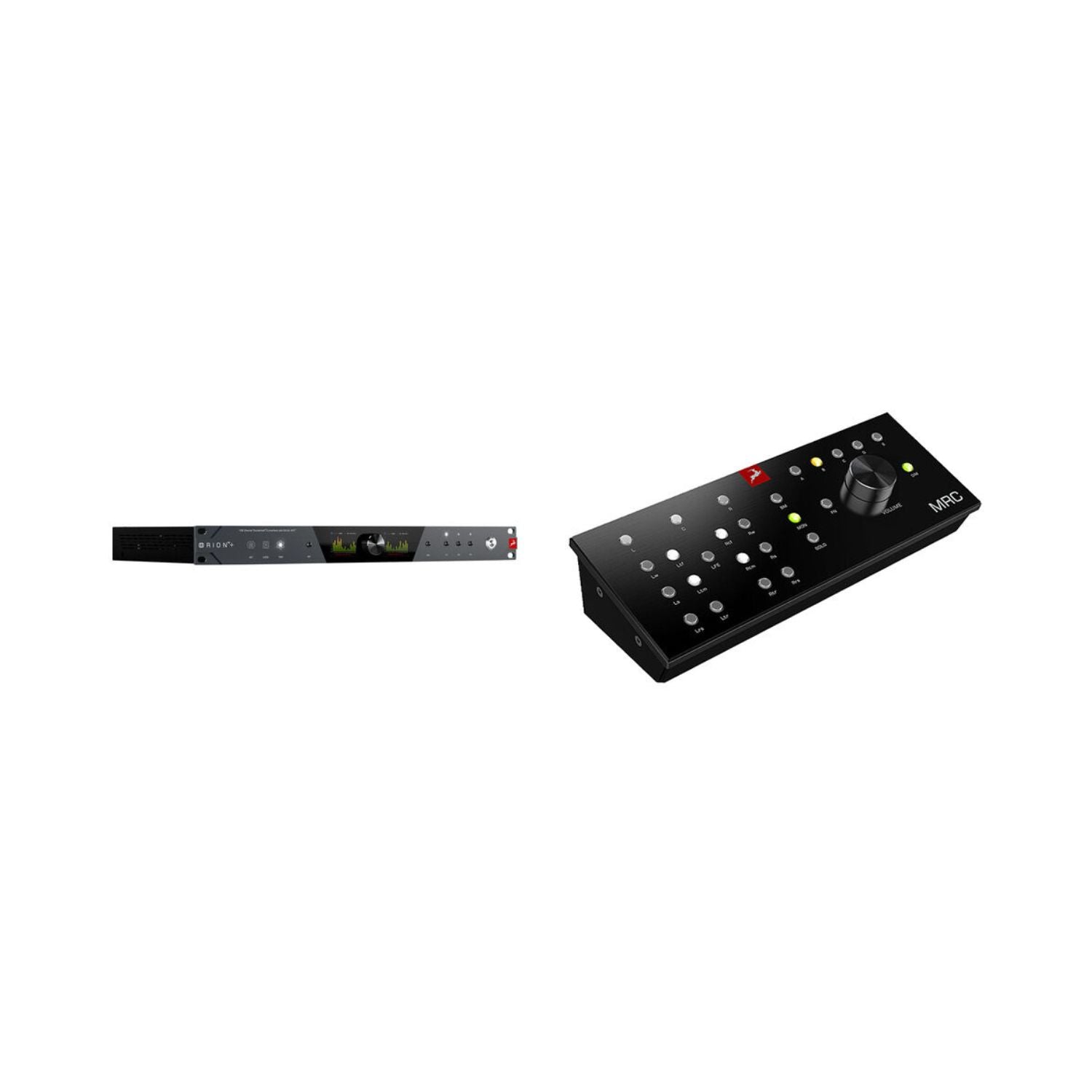

Antelope Orion 32+ Gen 4 AD/DA Thunderbolt/USB-B Audio Interface Kit with MRC Controller

Key Features

• Mastering-Grade AD/DA Conversion:Capture and monitor audio with exceptional depth and clarity, featuring up to 130dB dynamic range on the D/A outputs and 122dB on the A/D inputs.
• Massive Channel Streaming:Handle the most demanding projects with 128 channels of I/O over Thunderbolt 3 and extensive MADI connectivity, double that of the previous generation.
• 64-bit AFC™ Clocking Technology:Achieve flawless audio stability and a supremely detailed stereo image with Antelope's world-class jitter management algorithm.
• Included MRC Remote Controller:Gain tactile, hands-on control of the interface’s powerful multi-channel and immersive audio monitoring functions for a faster, more intuitive workflow.
• Flexible Connectivity Options:Integrates into any professional setup with Thunderbolt 3, USB 2.0, MADI, ADAT, and S/PDIF, all usable simultaneously for maximum versatility.
• Redesigned Software Control Panel:Experience a smoother workflow with a fully customizable routing matrix, powerful preset system, and a convenient monitoring pop-out widget.
• Atmos-Ready Monitoring Engine:Upgrade to a comprehensive immersive audio monitoring system, supporting over 23 formats from stereo to Dolby Atmos 9.1.6. A complimentary license is included with the MRC controller.

Why Orion 32+ Gen 4 with MRC Controller Is Better

The Orion 32+ Gen 4 represents a significant leap forward from its highly-regarded predecessor, the Gen 3. The primary enhancement is the converter technology, which boosts the D/A dynamic range to an exceptional 130dB, a noticeable improvement for critical listening and mastering. Connectivity has been doubled, now offering 128 channels over a single Thunderbolt 3 connection, compared to 64 channels on the Gen 3. Furthermore, the Gen 4 introduces DC-coupled I/O for direct control of modular synthesizers and is built to support Antelope's advanced, Atmos-ready monitoring system, a feature unlocked in this kit by the included MRC controller. While the Gen 3 featured onboard FPGA effects, the Gen 4 focuses purely on delivering the absolute best conversion and clocking, streamlining the software for a more refined and powerful user experience.

Advantages

Best Suitable For

• Professional Recording Studios: The ideal centerpiece for tracking full bands and orchestras.
• Mastering Facilities: For engineers who require the most transparent and accurate AD/DA conversion available.
• Post-Production Houses: Perfect for complex multichannel and immersive audio workflows like Dolby Atmos.
• Live Sound Engineers: A reliable solution for high-channel-count multitrack recording of live performances.
• Broadcast Facilities: Offers the channel count and robust clocking needed for demanding broadcast environments.

Why Buy From Pro Audio Brands

• Authorized Antelope Audio Dealer: As an official retailer in India, we guarantee 100% genuine products.
• Full GST Invoice Provided: Claim input tax credit on your purchase with a proper GST bill.
• Official Indian Warranty: Your purchase is protected by the manufacturer's official 1-year warranty, serviced in India.
• Expert Technical Support: Our team of audio professionals is ready to assist with setup, configuration, and troubleshooting.
• Free & Insured All-India Shipping: We deliver safely and securely to all locations across India at no extra cost.
• Pre-Sales Consultation: Confused about your setup? Contact our experts for guidance on building your ideal studio.

FAQs for Antelope Orion 32+ Gen 4 AD/DA Thunderbolt/USB-B Audio Interface Kit with MRC Controller

Q: What is the main advantage of the Gen 4 over the Gen 3?

A: The Gen 4 features superior AD/DA converters with a higher dynamic range (up to 130dB), and double the channel count over Thunderbolt 3 (128 channels) and MADI (128 channels).

Q: Does the Orion 32+ Gen 4 have the built-in FPGA effects like the Gen 3?

A: No, the Gen 4 focuses on providing the highest quality conversion and clocking. The real-time FPGA effects platform is not a feature of this model.

Q: Is this interface compatible with my Windows PC?

A: Yes, the Orion 32+ Gen 4 is fully compatible with both Windows and macOS systems via Thunderbolt and USB.

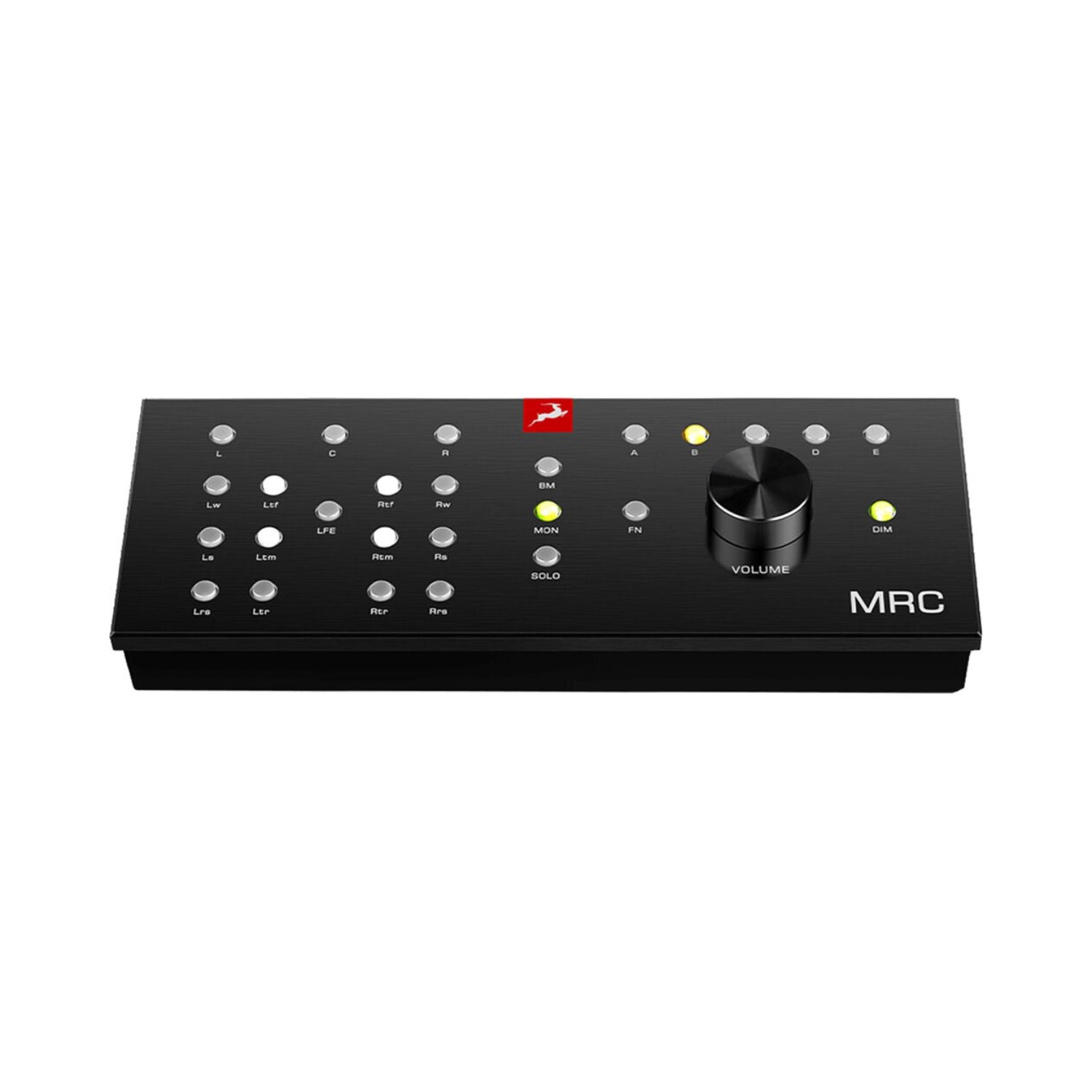

Q: What is the purpose of the MRC Controller included in this kit?

A: The MRC provides tactile hardware control for the interface's advanced monitoring functions, including volume, speaker selection, and preset recall, which is especially useful for surround and Dolby Atmos workflows.

Q: Can I use this interface for Dolby Atmos mixing?

A: Yes, the Orion 32+ Gen 4 has an optional Atmos-ready monitoring system upgrade. This kit includes the MRC controller which comes with a complimentary license to enable this functionality.

Q: What kind of cables do I need for the analog inputs and outputs?

A: The 32 analog inputs and outputs use D-Sub 25 (DB25) connectors following the TASCAM pinout standard. You will need DB25 breakout cables to XLR, TRS, or other connectors.

Q: Can I connect my modular synth directly to this interface?

A: Yes, the Orion 32+ Gen 4 features DC-coupled I/O, allowing you to send and receive CV (Control Voltage) signals between your DAW and your modular synthesizers.

Q: What is the warranty and service process in India?

A: This unit comes with an official 1-year manufacturer warranty. As an authorized dealer, Pro Audio Brands will facilitate the service process for any warranty claims within India.

Q: Will I receive a GST invoice for my purchase?

A: Yes, Pro Audio Brands provides a full GST invoice with every purchase, allowing you to claim input tax credit for your business.

Q: How many units can I connect together?

A: You can daisy-chain up to four Orion 32+ Gen 4 units for a total of 128 channels of AD/DA conversion over a single Thunderbolt connection to your computer.

Q: Does the interface require a computer to operate?

A: While a computer is needed for recording and full control, the redesigned control panel allows for powerful preset recall, meaning you can use it as a standalone converter once configured.

Q: What is 64-bit AFC Clocking?

A: Acoustically Focused Clocking is Antelope Audio's proprietary jitter management technology. The 64-bit algorithm ensures pristine, artifact-free conversion, resulting in a stable and detailed stereo image.

Q: Can I use the USB and Thunderbolt ports at the same time?

A: No, you must choose to connect to your computer via either Thunderbolt 3 for 128 channels or USB 2.0 for 32 channels. However, all analog and digital ports can be used simultaneously.

Q: Is the power supply compatible with Indian power outlets?

A: Yes, the included power supply is a universal unit compatible with standard Indian voltages and plug types.

Q: How does the low-latency monitoring work?

A: The interface features four internal 32-channel stereo mixers that can be configured via the software control panel. This allows you to create monitor mixes with near-zero latency, independent of your DAW's buffer settings.
