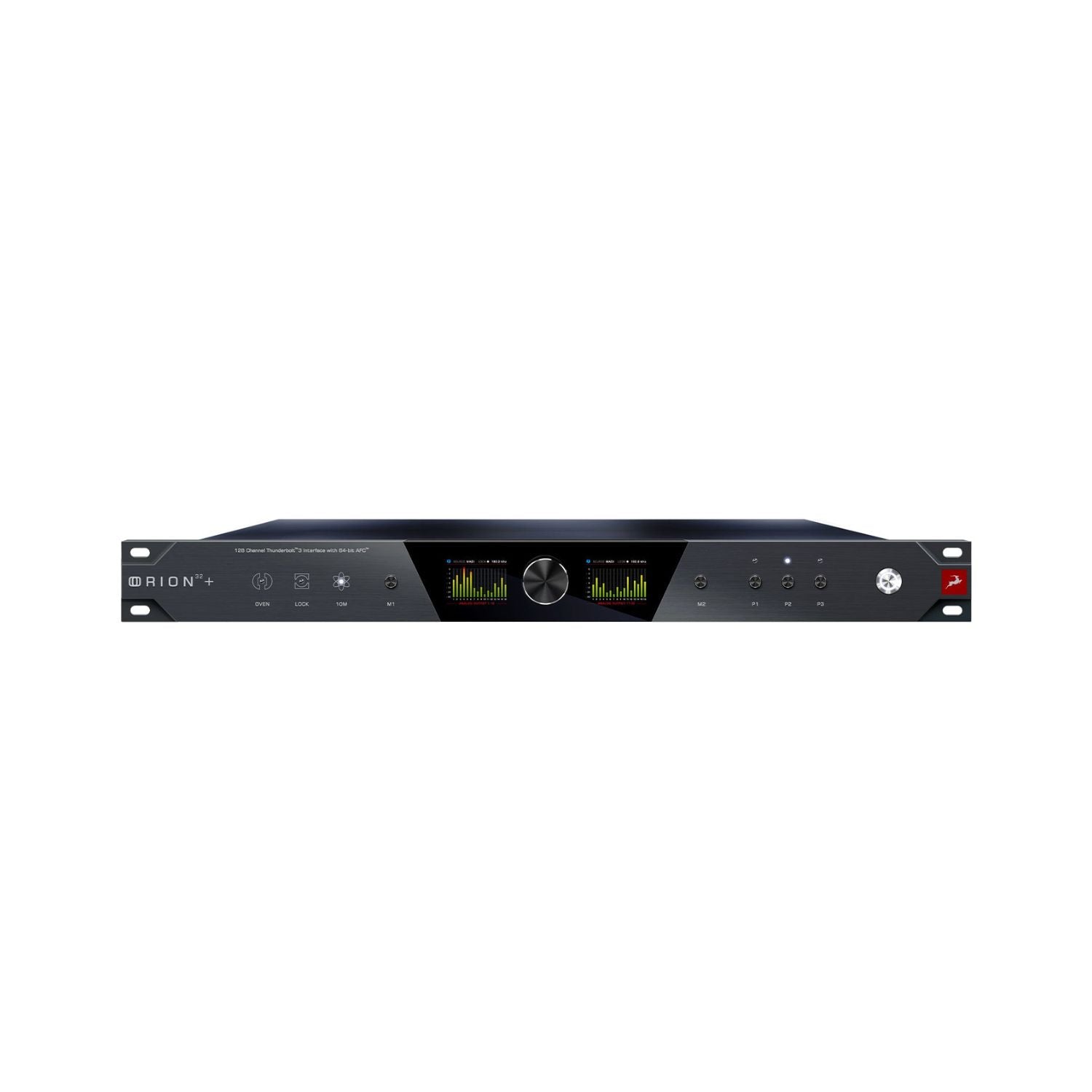

Antelope Orion 32+ Gen 4 32-channel Thunderbolt/USB Audio Interface

Key Features

• Mastering-Grade AD/DA Conversion:Achieve stunning clarity and depth with newly designed converters offering up to 130dB dynamic range on the D/A monitor outputs. Your recordings will sound transparent and true to the source.

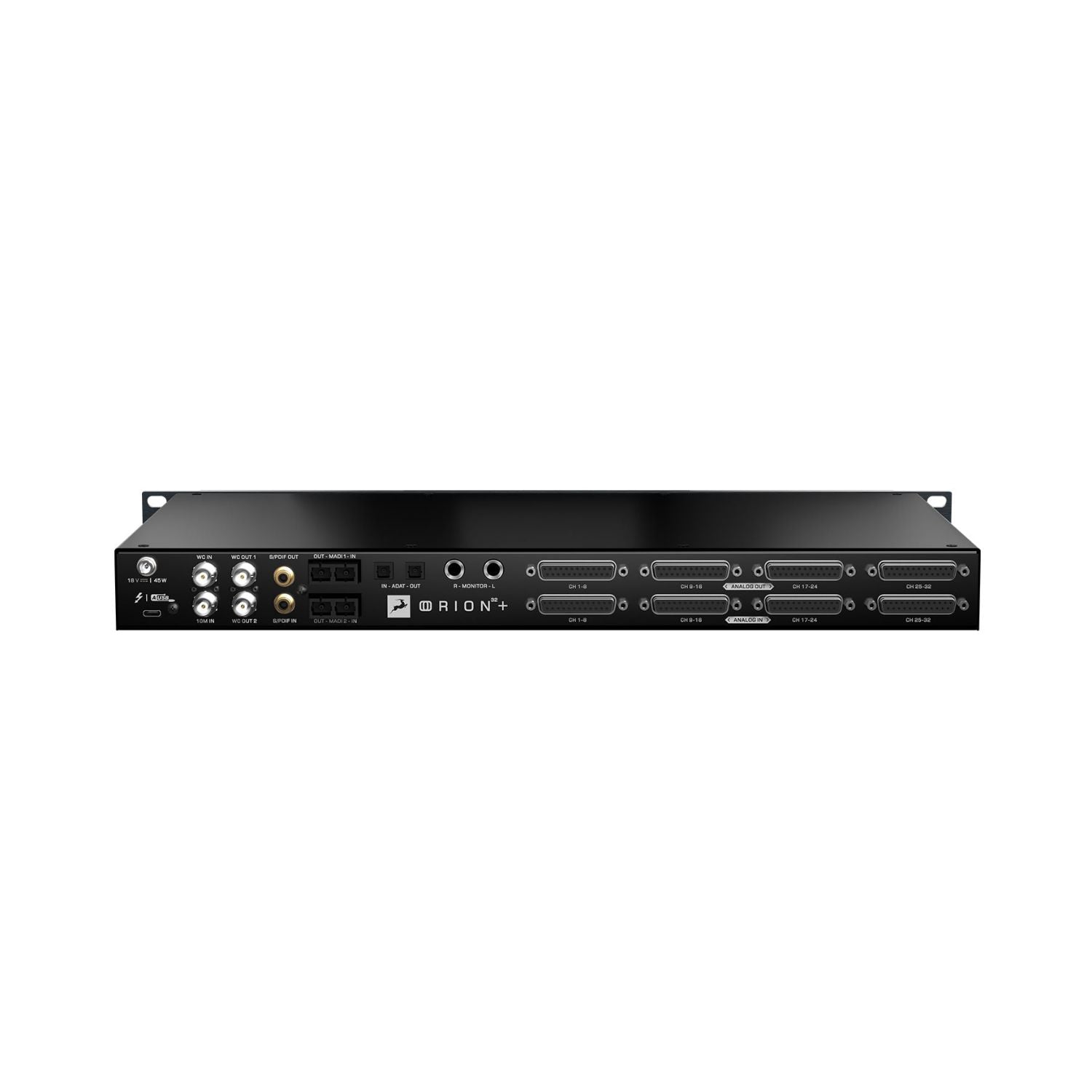

• Massive I/O & Connectivity:Handle any session size with 32x32 analog I/O on DB25, plus 128 channels of digital I/O over MADI, 8 channels on ADAT, and 2 on S/PDIF. All ports can be used simultaneously for maximum flexibility.
• High-Speed Thunderbolt 3 & USB:Stream up to 128 channels of audio at 192kHz with near-zero latency over Thunderbolt 3. A USB-C port is also included, offering 32 channels of I/O for universal compatibility.
• 64-bit AFC™ Clocking Technology:Experience unparalleled clocking stability and jitter management. Antelope's 4th Generation Acoustically Focused Clocking ensures sonic precision, tight transients, and an expansive stereo image.
• Redesigned Software Control:A completely new software control panel offers an intuitive workflow with a customizable signal routing matrix, a powerful preset system, and a convenient 'always-on-top' monitoring widget.
• Immersive Audio Ready:Upgrade to a complete, Atmos-ready monitoring system. The interface supports over 23 surround and immersive formats up to Dolby Atmos 9.1.6, with precise speaker and room calibration tools (optional license).
• DC-Coupled I/O:Directly interface with and control modular synthesizers. Send CV signals from your DAW to your hardware instruments, opening up new creative possibilities for electronic musicians.

Why Antelope Orion 32+ Gen 4 Is Better

The Orion 32+ Gen 4 represents a significant leap forward from its highly-regarded predecessor, the Gen 3. The most critical enhancement is in the AD/DA conversion, with the D/A dynamic range boosted from ~120dB to an exceptional 130dB, resulting in superior audio fidelity. Connectivity bandwidth has been doubled, now offering 128 channels over Thunderbolt 3 (up from 64) and 128 channels of MADI. While the Gen 3 featured onboard real-time FPGA effects, the Gen 4 focuses purely on core performance, forgoing the built-in effects for a more streamlined and powerful software control panel that simplifies the incredibly complex routing possibilities. This makes the Gen 4 a more dedicated, powerful, and future-proof centerpiece for professional studios that prioritize conversion quality and channel count above all else.

Advantages

Best Suitable For

• Professional Recording Studios: Who require a high channel count for tracking full bands and integrating extensive analog hardware.
• Dolby Atmos & Immersive Audio Mixers: Needing a reliable, high-capacity interface to manage complex multi-speaker monitoring and rendering.
• Broadcast Facilities: That demand flawless audio conversion and clocking for live-to-air or large-scale recording applications.
• Live Sound Engineers: Looking for a robust solution to capture multi-track recordings from large-format digital consoles.
• Hardware Synthesizer Enthusiasts: Who can leverage the DC-coupled I/O to integrate their modular setups directly with their DAW.

Why Buy From Pro Audio Brands

• Authorized Antelope Audio Dealer: As an official retailer in India, we guarantee 100% genuine products.
• Official 1-Year Manufacturer Warranty: Your purchase is protected with a full one-year warranty, serviceable in India.
• GST Invoice for Input Credit: We provide proper GST billing, allowing you to claim input tax credit for your business.
• Free & Insured All-India Delivery: Get your interface delivered safely to your doorstep, anywhere in India, at no extra cost.
• Expert Technical Support: Our team of audio professionals is ready to assist you with setup, configuration, and troubleshooting.

FAQs for Antelope Orion 32+ Gen 4 32-channel Thunderbolt/USB Audio Interface

Q: What is the main advantage of the Gen 4 over the Gen 3?

A: The Gen 4 features significantly improved D/A conversion with up to 130dB dynamic range, double the channel count over Thunderbolt 3 (128 channels), and a completely redesigned, more intuitive software control panel.

Q: Does the Orion 32+ Gen 4 have built-in effects like the Gen 3?

A: No, the Gen 4 focuses on providing the best possible conversion and connectivity. It does not include the onboard FPGA real-time effects that were a feature of the Gen 3.

Q: Can I use this with a PC or is it Mac only?

A: The Orion 32+ Gen 4 is fully compatible with both Windows (10/11) and macOS (10.12 and newer) over both Thunderbolt and USB.

Q: What kind of cables do I need for the analog I/O?

A: You will need D-Sub 25 (DB25) breakout cables, typically to 8x XLR or 8x TRS, depending on your studio's patchbay or outboard gear. The pinout follows the TASCAM standard.

Q: Is a Thunderbolt cable included in the box?

A: No, the unit comes with a USB-C cable. A Thunderbolt 3 cable must be purchased separately to access the full 128 channels of I/O.

Q: Can I use this interface without a computer?

A: Yes, the Orion 32+ Gen 4 can operate in standalone mode. You can control routing, metering, and monitoring directly from the two front panel displays.

Q: What is DC-Coupled I/O used for?

A: DC-coupled I/O allows you to send and receive Control Voltage (CV) signals, which is essential for controlling and interfacing with modular synthesizers and other analog synth gear directly from your DAW.

Q: How do I get the Dolby Atmos monitoring functionality?

A: The immersive audio monitoring system is an optional software upgrade. The license can be purchased separately from Antelope Audio's software store.

Q: What is the warranty policy in India?

A: When purchased from an authorized dealer like Pro Audio Brands, the product comes with a 1-year official manufacturer warranty that is serviceable within India.

Q: Can I connect this to an older computer with Thunderbolt 2?

A: Yes, you can connect to a Thunderbolt 2 port using an official Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (sold separately).

Q: How many channels can I get over USB?

A: When connected via USB 2.0, the interface supports up to 32 channels of I/O at sample rates up to 192kHz.

Q: Do I need an Antelope Audio master clock with this unit?

A: While the Orion 32+ Gen 4 has Antelope's world-class internal clock, you can connect it to an external master clock like the 10MX for even greater clocking stability if your setup demands it. However, it is not required for outstanding performance.

Q: Is the power supply auto-voltage for use in India?

A: Yes, the included switching power supply automatically adapts to the mains electricity in any country, including India.

Q: Can I control the monitor volume from the unit itself?

A: Yes, unlike some previous versions, the Gen 4 includes a main rotary encoder on the front panel that can be used to control the dedicated monitor output level.
