Adam Audio T7V Nearfield Monitor 2-Way Studio Monitor

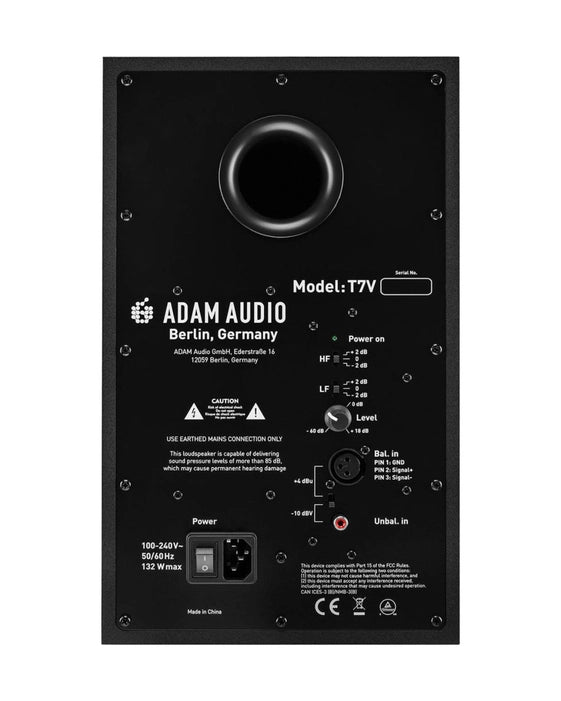

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working. On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair. The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with. The ADAM Audio T10S subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end. The Adam Audio T7V is a popular nearfield studio monitor known for its balanced sound reproduction and clarity, making it a favored choice among audio engineers, producers, and musicians. Here are some technical skills and features associated with the Adam Audio T7V:

• Frequency Response: Understanding the frequency response of the T7V is crucial. It has a frequency response ranging from 39 Hz to 25 kHz, ensuring accurate representation across the audible spectrum.
  Driver Technology: The T7V features a 7-inch polypropylene woofer and a U-ART (Unique Accelerated Ribbon Tweeter) tweeter. Understanding the technology behind these drivers and their characteristics will help optimize their performance.
• Amplification: The T7V is bi-amplified with Class D amplifiers. Familiarity with bi-amplification and Class D amplifier technology will aid in setting up and optimizing the monitors for different environments.
• Input Options: The monitor offers balanced XLR and unbalanced RCA inputs, enabling connectivity with various audio sources. Knowing how to properly connect and switch between these inputs is essential.
• Crossover Technology: The T7V utilizes a precise crossover design to ensure seamless integration between the woofer and tweeter. Understanding crossover frequencies and slopes can help in fine-tuning the monitor's performance.
• Room Acoustics: Having knowledge about room acoustics and how they affect monitor placement and sound reproduction is crucial for optimizing the performance of the T7V. Techniques such as acoustic treatment and monitor placement can greatly enhance the listening experience.
• Calibration: The T7V may feature calibration options such as high and low shelving filters to compensate for room acoustics or personal preferences. Understanding how to use these calibration features can help tailor the sound to specific listening environments.
• Power Handling: The T7V has a maximum SPL of 110 dB per pair, which should be considered when working with different audio sources and signal levels.
• Nearfield Monitoring Techniques: Knowing how to properly set up and utilize nearfield monitoring techniques with the T7V is essential for accurate sound reproduction and critical listening.
• Maintenance: Understanding basic maintenance procedures such as cleaning the monitors and ensuring proper ventilation to prevent overheating will help prolong the lifespan of the T7V.

By mastering these technical skills and features associated with the Adam Audio T7V nearfield monitor, audio professionals can optimize their workflow and achieve accurate sound reproduction in their studio environments.

Specifications

• General Data
  Panel: Rear
  Max. Power Consumption: 132 W
  Weight: 15.7 lbs (7.1 kg)
  Height x Width x Depth: 13.7″ x 8.3″ x 11.5” ( 347 mm x 210 mm x 293 mm)
  Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
  Delivery Contents: Power cord, Quick Start Guide
• Audio Input Connectors
  Analog: XLR / RCA
  Input Impedance: 10 kOhm / 20 kOhm
• Amplification
  Woofer
  Amplifier Type: PWM
  Amp. Power RMS: 50 W
  Tweeter
  Amplifier Type: PWM
  Amp. Power RMS: 20 W
• Acoustics
  Frequency Response: 39 Hz – 25 kHz (-6 dB)
  THD > 80 Hz: 0.5 %
  Max. SPL per pair at 1 m: ≥110 dB
  Crossover Frequency: 2.6 kHz
• Drivers
  Woofer
  Basket Diameter: 7″
  Voice Coil Diameter: 1″
  Cone Material: Polypropylene
  Tweeter
  Type: U-ART
  Diaphragm Area: 4 inch² (2420 mm²)
  Equiv. Diaphragm Diameter: 1.9″ (48 mm)
  Velocity Transform Ratio: 4 to 1
  Diaphragm Weight: 0.17 g
  Waveguide: HPS
• Control Options
  Input Sensitivity: -10 to +4 dB
  Gain: Yes
  High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
  Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB
